Product Details:
|
| Name: | Hdd Drill Pipe | Diameter: | 127 Mm |
|---|---|---|---|
| Length: | 6 M | Thread: | NC50 |
| Wall Thickness: | 9.19 Mm | Tool Joint OD: | 168 Mm |
| Steel Grade: | S | Upset Forge: | IEU |
| Highlight: | 9.19mm wall thickness hdd drill pipe,127mm od hdd drill pipe,ieu upset forge pipe hdd |
||

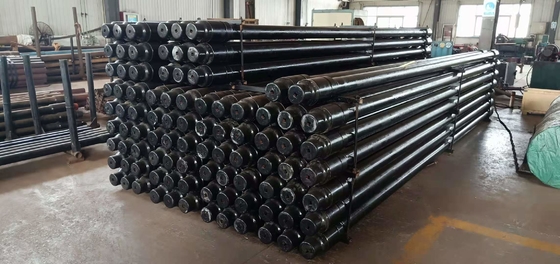

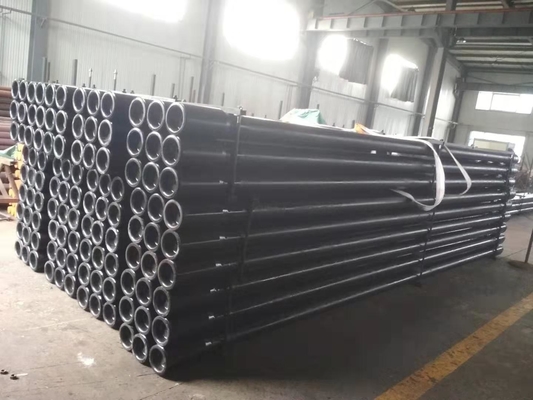

9.19mm Wall Thickness IEU Upset Forges NC50 127OD 6000MM HDD Drill Pipe
Product Detail
Product Description
Product Specifications
| Diameter | Wall Thickness | Length | Tool Joint OD | Upset Forge |
Thread | Steel Grade |
||||
| (mm) | (in) | (mm) | (in) | (m) | (ft) | (mm) | (in) | |||
| Φ127 | 5 | 9.19 | 0.36" | 6 | 19.69 | 168 | 6.63* | IEU | NC50 | G |
| 9 | 29.53 | |||||||||
| 12.7 | 0.5" | 9.6 | 31.50 | S | ||||||
Product series
| Brand | Model | Length(shoulder- to-shoulder) |
Outside Diameter |
Tool Joint OD | Wall Thickness | Steel Grade |
| CASE | Case6010 | 120"±0.5" | 1.9"±0.031" | 2.25*±0.16" | 0.24" | S135 |
| Case6030 | 120"±0.5" | 2.375"*0.031* | 2.625"±0.16" | 0.28" | S135 | |
| VERMEER | D10X15 | 120"±0.5" | 1.66"±0.31" | 1.88"±0.16" | 0.24" | S135 |
| D16x20/D18x22 | 120"±0.5" | 1.9"±0.31" | 2.125"±0.16" | 0.24" | S135 | |
| D24X40F/D24X40LW | 120"±0.5" | 2.375"±0.31" | 2.625"±0.16" | 0.28" | S135 | |
| D33X44ID40x40 | 180"±0.5" | 2.375"±0.31" | 2.625"±0.16" | 0.28" | S135 | |
| D50X100 | 180"±0.5" | 2.875"±0.31" | 3.25"±0.16" | 0.362" | S135 | |
| D80X100 | 180"±0.5" | 3.5"±0.31" | 3.625"±0.16" | 0.368 | S135 | |
| D100X120 | 240"±0.5" | 3.5"±0.31" | 4.125"±0.16" | 0.368* | S135 | |
| D130X120 | 240"±0.5" | 3.5"±0.31" | 4.125"±0.16" | 0.368* | S135 | |
| DITCH WITCH |
JT1720/1720V | 118"±0.5" | 2.063"±0.31" | 2.5" | 0.27" | S135 |
| JT2020 | 118"±0.5" | 2.063"±0.31" | 2.625* | 0.27* | S135 | |
| JT2720/2720V | 118"±0.5" | 2.375"±0.31" | 2.75* | 0.28" | S135 | |
| JT2720M1 | 118"±0.5" | 2.375"±0.31" | 3 | 0.28% | S135 | |
| JT4020 | 117.2"±0.5" | 2.875"±0.31" | 3.25" | 0.362* | S135 | |
| JT4020M1 | 117.2"±0.5" | 2.875"±0.31" | 3.5" | 0.362* | S135 | |
| JT7020 | 117.2"±0.5" | 3.5"±0.31" | 4" | 0.368* |
S135 |
| Diameter | Wall Thickness | Length | Weight | Tool Joint OD | Thread | Steel Grade | Torque Limit | Min.Bend Radius | ||||||
| (mm) | (in) | (mm) | (in) | (m) | (ft) | (Kg) | (mm) | (in) | (KN.m) | (Lb.ft) | (m) | (ft) | ||
| 50 | 2 | 6.5 | 0.256 | 2 | 6.56 | 17 | 53 | 2.09 | ZX50 | G | 2.9 | 2140 | 38 | 124.67 |
| 2.5 | 8.20 | 20 | S | 3 | 2214 | 30 | 98.43 | |||||||
| 60 | 2 3/8" | 7.1 | 0.28 | 2 | 6.56 | 23 | 68 | 2.68 | ZX60 | G | 6 | 4428 | 42 | 137.79 |
| 3 | 9.84 | 32 | S | 6.3 | 4650 | 33 | 108.27 | |||||||
| 73 | 2 7/8" | 8 | 0.315 | 3 | 9.84 | 43 | 78 | 3.23 | NC23 | G | 12 | 8856 | 58 | 190.29 |
| 4 | 13.12 | 57 | S | 13 | 9594 | 45 | 147.69 | |||||||
| 76 | 3 | 9 | 0.354 | 3 | 9.84 | 56 | 88 | 3.47 | NC26 | G | 14 | 10332 | 62 | 203.41 |
| 4 | 13.12 | 71 | S | 16.5 | 12177 | 56 | 183.73 | |||||||
| 83 | 3 1/4* | 9 | 0.354 | 3 | 9.84 | 57 | 92 | 3.62 | D80 NC26 |
G | 16.8 | 12398 | 73 | 239.50 |
| 4.5 | 14.76 | 79 | S | 18 | 13284 | 65 | 213.26 | |||||||
| 89 | 3 1/2" | 9.35 | 0.368 | 4.5 | 14.76 | 99 | 105 | 4.13 | NC31 | G | 22.3 | 16457 | 80 | 262.47 |
| 6 | 19.69 | 128 | S | |||||||||||
| 102 | 4 | 10 | 0.394 | 6 | 19.69 | 160 | 123 | 4.41 | NC38 | G | 38 | 28044 | 90 | 295.28 |
| S | 48 | 35424 | 82 | 296.03 | ||||||||||
| 114 | 4 1/2" | 10 | 0.394 | 6 | 19.69 | 162 | 127 | 5 | NC38 NC40 |
G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 | 295.28 | ||||||||||
| 114 | 4 1/2" | 10 | 0.394 | 6 | 19.69 | 178 | 157 | 6.18 | NC46 | G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 |
295.28 |
||||||||||
Our Services:
Drill pipe strictly according to API ISO9001 standard.
If you found to quality problems within one month of the package returned. All strictly according to the contract and fulfill the obligations and responsibilities
24 hours online customer service,feel free contact us.
About us
LangFang Baiwei Drill Co.,Ltd located in the center of Beijing, Tianjin and Hebei-Yongqing Industrial Area. Langfang Hebei.
Our company is a drilling tools manufacturing enterprisewith integration of design, geological, well, double wall, oil, auger and other special drilling pipes. And trenchless special drilling tools such as pilot guide bits,swivels, reamers, sub saver, pneumatic pipe rammer, pipe bursting machine.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
