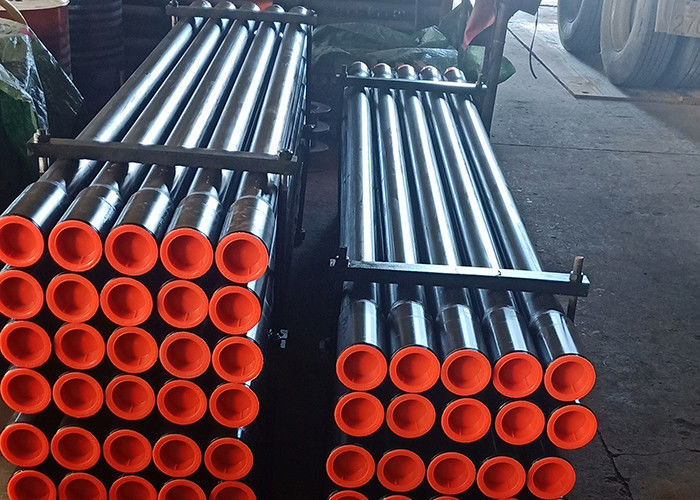

18 KN.M 9mm Wall Thickness Hdd Drill Pipe D80 NC26 Thread

18 KN.M 9mm Wall Thickness Hdd Drill Pipe D80 NC26 Thread
18 KN.M 9mm Wall Thickness Hdd Drill Pipe D80 NC26 Thread

Large Image :  18 KN.M 9mm Wall Thickness Hdd Drill Pipe D80 NC26 Thread

Product Details:
Place of Origin: Hebei China
Brand Name: Long way
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: With iron
Delivery Time: 20-30 working days, which will be adjusted according to different products and inventory
Payment Terms: T/T
Contact Now

18 KN.M 9mm Wall Thickness Hdd Drill Pipe D80 NC26 Thread

Description
Name: Hdd Drill Pipe Diameter: 83 Mm
Wall Thickness: 9 Mm Length: 3 M
Weight: 79 Kg Tool Joint OD: 92 Mm
Thread: D80 NC26 Steel Grade: S
Torque Limit: 18 KN.m Min.Bend Radius: 65 M
Highlight:

9mm Hdd Drill Pipe

,

NC26 Thread Hdd Drill Pipe

,

18 KN.M hdd drill rods

Drilling Rig Integral Spiral Heavy Weight Drill Pipe





Product Description


The drill pipe joint adopts a double wall frame (double top) structure. This structure can enhance the tightness of the joint, so that the pressure of the mud can achieve no leakage in the middle. This structure greatly improves the resistance to the pilot drill bit and the drill bit, and the use of this structure improves the torsional strength of the drill rod, so that the box thread will not be deformed.



Product Specifications



Diameter Wall Thickness Length Weight Tool Joint OD Thread Steel Grade Torque Limit Min.Bend Radius
83 3 1/4* 9 0.354 3 9.84 57 92 3.62 D80
NC26		 G 16.8 12398 73 239.50
4.5 14.76 79 S 18 13284 65 213.26





Product series



Brand Model Length(shoulder-
to-shoulder)		 Outside
Diameter		 Tool Joint OD Wall Thickness Steel Grade
CASE Case6010 120"±0.5" 1.9"±0.031" 2.25*±0.16" 0.24" S135
Case6030 120"±0.5" 2.375"*0.031* 2.625"±0.16" 0.28" S135
VERMEER D10X15 120"±0.5" 1.66"±0.31" 1.88"±0.16" 0.24" S135
D16x20/D18x22 120"±0.5" 1.9"±0.31" 2.125"±0.16" 0.24" S135
D24X40F/D24X40LW 120"±0.5" 2.375"±0.31" 2.625"±0.16" 0.28" S135
D33X44ID40x40 180"±0.5" 2.375"±0.31" 2.625"±0.16" 0.28" S135
D50X100 180"±0.5" 2.875"±0.31" 3.25"±0.16" 0.362" S135
D80X100 180"±0.5" 3.5"±0.31" 3.625"±0.16" 0.368 S135
D100X120 240"±0.5" 3.5"±0.31" 4.125"±0.16" 0.368* S135
D130X120 240"±0.5" 3.5"±0.31" 4.125"±0.16" 0.368* S135
DITCH
WITCH		 JT1720/1720V 118"±0.5" 2.063"±0.31" 2.5" 0.27" S135
JT2020 118"±0.5" 2.063"±0.31" 2.625* 0.27* S135
JT2720/2720V 118"±0.5" 2.375"±0.31" 2.75* 0.28" S135
JT2720M1 118"±0.5" 2.375"±0.31" 3 0.28% S135
JT4020 117.2"±0.5" 2.875"±0.31" 3.25" 0.362* S135
JT4020M1 117.2"±0.5" 2.875"±0.31" 3.5" 0.362* S135
JT7020 117.2"±0.5" 3.5"±0.31" 4" 0.368*

S135





Diameter Wall Thickness Length Weight Tool Joint OD Thread Steel Grade Torque Limit Min.Bend Radius
(mm) (in) (mm) (in) (m) (ft) (Kg) (mm) (in)     (KN.m) (Lb.ft) (m) (ft)
50 2 6.5 0.256 2 6.56 17 53 2.09 ZX50 G 2.9 2140 38 124.67
2.5 8.20 20 S 3 2214 30 98.43
60 2 3/8" 7.1 0.28 2 6.56 23 68 2.68 ZX60 G 6 4428 42 137.79
3 9.84 32 S 6.3 4650 33 108.27
73 2 7/8" 8 0.315 3 9.84 43 78 3.23 NC23 G 12 8856 58 190.29
4 13.12 57 S 13 9594 45 147.69
76 3 9 0.354 3 9.84 56 88 3.47 NC26 G 14 10332 62 203.41
4 13.12 71 S 16.5 12177 56 183.73
83 3 1/4* 9 0.354 3 9.84 57 92 3.62 D80
NC26		 G 16.8 12398 73 239.50
4.5 14.76 79 S 18 13284 65 213.26
89 3 1/2" 9.35 0.368 4.5 14.76 99 105 4.13 NC31 G 22.3 16457 80 262.47
6 19.69 128 S
102 4 10 0.394 6 19.69 160 123 4.41 NC38 G 38 28044 90 295.28
S 48 35424 82 296.03
114 4 1/2" 10 0.394 6 19.69 162 127 5 NC38
NC40		 G 50 36900 98 321.52
  S 64 47232 90 295.28
114 4 1/2" 10 0.394 6 19.69 178 157 6.18 NC46 G 50 36900 98 321.52
S 64 47232 90

295.28





18 KN.M 9mm Wall Thickness Hdd Drill Pipe D80 NC26 Thread 0





International Service Culture & Product Support


We support our products. Our goal is 100% customer satisfaction. For this reason, we take every inquiry and question seriously. Our multilingual, multicultural management team prioritizes smooth and effective communication.
We work with partners and end users to ensure that they get the most value from each product. .We provide complete guarantee for defects in materials or workmanship of all products.
