ZX60 Thread Double Top S135 Drill Pipe / Directional Drilling Pipe

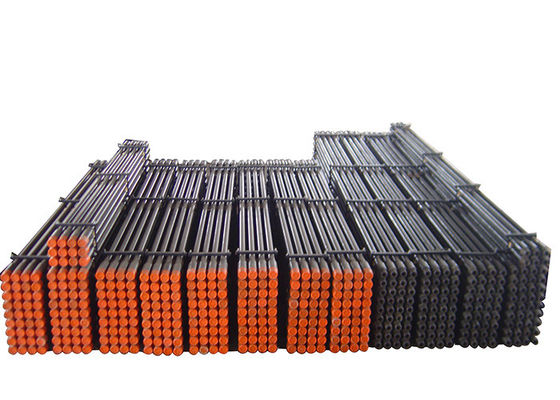

Large Image : ZX60 Thread Double Top S135 Drill Pipe / Directional Drilling Pipe

Product Details:

Place of Origin:	Hebei China
Brand Name:	Long way

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	With iron
Delivery Time:	20-30 working days, which will be adjusted according to different products and inventory
Payment Terms:	T/T

Contact Now

ZX60 Thread Double Top S135 Drill Pipe / Directional Drilling Pipe

Description

Name:	Hdd Drill Pipe	Diameter:	60 Mm
Wall Thickness:	7.1 Mm	Length:	3 M
Weight:	32 Kg	Tool Joint OD:	68 Mm
Thread:	ZX60	Steel Grade:	S
Torque Limit:	6.3 KN.m	Min.Bend Radius:	33 M
Highlight:	ZX60 Thread S135 Drill Pipe , Double Top S135 Drill Pipe , ZX60 Thread Directional Drilling Pipe

ZX60 Thread Double Top Structure HDD Drill Pipe

Product Description

Drill pipe joints adopt the double ledge (double top) structure. Such structure can enhance the tightness of joints so that the pressure of the mud could realize non-leakage half-way. Greatly reduce the resistance to pilot drilling and back, using this structure improves the torsional strength of drill pipe so that the box thread will not deformed.

Product Detail

Model No.:DIA 50/DIA60/DIA73

Production Capacity:enough

Delivery Date:30 days after payment

Type:Drilling Rig

trenchless drill rod:HDD

Means of Transport:Ocean,Land,Air

Packing:with iron

Application:Others

Brand Name:Long way

Specifications

Diameter		Wall Thickness		Length		Weight	Tool Joint OD		Thread	Steel Grade	Torque Limit		Min.Bend Radius
(mm)	(in)	(mm)	(in)	(m)	(ft)	(Kg)	(mm)	(in)			(KN.m)	(Lb.ft)	(m)	(ft)
50	2	6.5	0.256	2	6.56	17	53	2.09	ZX50	G	2.9	2140	38	124.67
				2.5	8.20	20				S	3	2214	30	98.43
60	2 3/8"	7.1	0.28	2	6.56	23	68	2.68	ZX60	G	6	4428	42	137.79
				3	9.84	32				S	6.3	4650	33	108.27
73	2 7/8"	8	0.315	3	9.84	43	78	3.23	NC23	G	12	8856	58	190.29
				4	13.12	57				S	13	9594	45	147.69
76	3	9	0.354	3	9.84	56	88	3.47	NC26	G	14	10332	62	203.41
				4	13.12	71				S	16.5	12177	56	183.73
83	3 1/4*	9	0.354	3	9.84	57	92	3.62	D80 NC26	G	16.8	12398	73	239.50
				4.5	14.76	79				S	18	13284	65	213.26
89	3 1/2"	9.35	0.368	4.5	14.76	99	105	4.13	NC31	G	22.3	16457	80	262.47
				6	19.69	128				S
102	4	10	0.394	6	19.69	160	123	4.41	NC38	G	38	28044	90	295.28
										S	48	35424	82	296.03
114	4 1/2"	10	0.394	6	19.69	162	127	5	NC38 NC40	G	50	36900	98	321.52
										S	64	47232	90	295.28
114	4 1/2"	10	0.394	6	19.69	178	157	6.18	NC46	G	50	36900	98	321.52
										S	64	47232	90	295.28

Brand	Model	Length(shoulder- to-shoulder)	Outside Diameter	Tool Joint OD	Wall Thickness	Steel Grade
CASE	Case6010	120"±0.5"	1.9"±0.031"	2.25*±0.16"	0.24"	S135
CASE	Case6030	120"±0.5"	2.375"0.031	2.625"±0.16"	0.28"	S135
VERMEER	D10X15	120"±0.5"	1.66"±0.31"	1.88"±0.16"	0.24"	S135
	D16x20/D18x22	120"±0.5"	1.9"±0.31"	2.125"±0.16"	0.24"	S135
	D24X40F/D24X40LW	120"±0.5"	2.375"±0.31"	2.625"±0.16"	0.28"	S135
	D33X44ID40x40	180"±0.5"	2.375"±0.31"	2.625"±0.16"	0.28"	S135
	D50X100	180"±0.5"	2.875"±0.31"	3.25"±0.16"	0.362"	S135
	D80X100	180"±0.5"	3.5"±0.31"	3.625"±0.16"	0.368	S135
	D100X120	240"±0.5"	3.5"±0.31"	4.125"±0.16"	0.368*	S135
	D130X120	240"±0.5"	3.5"±0.31"	4.125"±0.16"	0.368*	S135
DITCH WITCH	JT1720/1720V	118"±0.5"	2.063"±0.31"	2.5"	0.27"	S135
	JT2020	118"±0.5"	2.063"±0.31"	2.625*	0.27*	S135
	JT2720/2720V	118"±0.5"	2.375"±0.31"	2.75*	0.28"	S135
	JT2720M1	118"±0.5"	2.375"±0.31"	3	0.28%	S135
	JT4020	117.2"±0.5"	2.875"±0.31"	3.25"	0.362*	S135
	JT4020M1	117.2"±0.5"	2.875"±0.31"	3.5"	0.362*	S135
	JT7020	117.2"±0.5"	3.5"±0.31"	4"	0.368*	S135

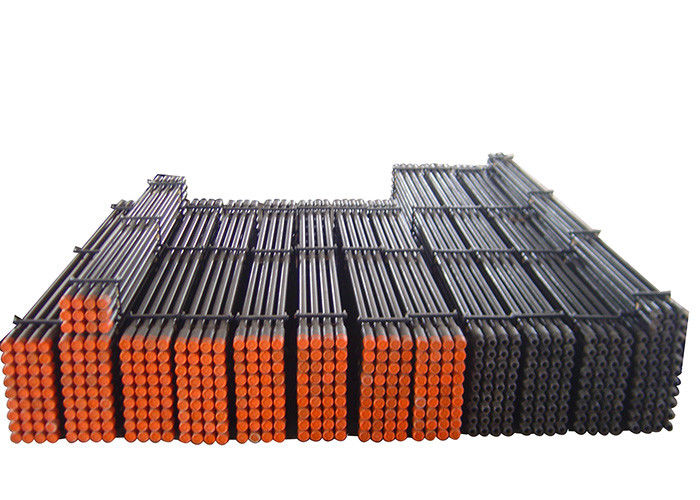

ZX60 Thread Double Top S135 Drill Pipe / Directional Drilling Pipe 0

ZX60 Thread Double Top S135 Drill Pipe / Directional Drilling Pipe 1

Quality Control

Quality guarantee is not only responsible for customers, but also the assurance of enterprise's steady development. The necessary test equipment and the effective & perfect production process control is the assurance of product quality. Taking the spirit of "To win the market with innovation, to serve the customers with friendship, to build the brand with quality, to develop the enterprise with sincerity", we utilize the advanced testing methods to make each product meticulously.
