120inch Length 2.6inch Tool Joint OD Hdd Drill Pipe Non Leakage

Large Image : 120inch Length 2.6inch Tool Joint OD Hdd Drill Pipe Non Leakage

Product Details:

Place of Origin:	Hebei China
Brand Name:	Long way

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	With iron
Delivery Time:	20-30 working days, which will be adjusted according to different products and inventory
Payment Terms:	T/T

Contact Now

120inch Length 2.6inch Tool Joint OD Hdd Drill Pipe Non Leakage

Description

Name:	Hdd Drill Pipe	Brand:	CASE
Model:	Case6030	Length:	120"±0.5"
Outside Diameter:	2.375"0.031	Tool Joint OD:	2.625"±0.16"
Wall Thickness:	0.28"	Steel Grade:	S135
Highlight:	120inch Hdd Drill Pipe , 2.62inch OD Hdd Drill Pipe , 120inch directional drilling pipe

0.28" Wall Thickness CASE HDD Drill Pipe

Product Detail

Model No.:CasCase 6030

Production Capacitenough

Delivery Date:30 days after payment

trenchless drill rod:HDD

Means of Transport:Ocean,Land,Air

Packing:with iron

Application:Others

Brand Name:Long way

Product Description

Drill pipe joints adopt the double ledge (double top) structure. Such structure can enhance the tightness of joints so that the pressure of the mud could realize non-leakage half-way. Greatly reduce the resistance to pilot drilling and back, using this structure improves the torsional strength of drill pipe so that the box thread will not deformed.

After optimal design of equal strength and the dispersion of stress, to qive full play to the potential of the drill pipe material.
After forging joint materials, increased material density and change the material of fibrous tissue, thereby enhancing its mechanical properties.

Product Specifications

Brand	Model	Length(shoulder- to-shoulder)	Outside Diameter	Tool Joint OD	Wall Thickness	Steel Grade
CASE	Case6010	120"±0.5"	1.9"±0.031"	2.25*±0.16"	0.24"	S135
CASE	Case6030	120"±0.5"	2.375"0.031	2.625"±0.16"	0.28"	S135

Product series

Brand	Model	Length(shoulder- to-shoulder)	Outside Diameter	Tool Joint OD	Wall Thickness	Steel Grade
CASE	Case6010	120"±0.5"	1.9"±0.031"	2.25*±0.16"	0.24"	S135
CASE	Case6030	120"±0.5"	2.375"0.031	2.625"±0.16"	0.28"	S135
VERMEER	D10X15	120"±0.5"	1.66"±0.31"	1.88"±0.16"	0.24"	S135
	D16x20/D18x22	120"±0.5"	1.9"±0.31"	2.125"±0.16"	0.24"	S135
	D24X40F/D24X40LW	120"±0.5"	2.375"±0.31"	2.625"±0.16"	0.28"	S135
	D33X44ID40x40	180"±0.5"	2.375"±0.31"	2.625"±0.16"	0.28"	S135
	D50X100	180"±0.5"	2.875"±0.31"	3.25"±0.16"	0.362"	S135
	D80X100	180"±0.5"	3.5"±0.31"	3.625"±0.16"	0.368	S135
	D100X120	240"±0.5"	3.5"±0.31"	4.125"±0.16"	0.368*	S135
	D130X120	240"±0.5"	3.5"±0.31"	4.125"±0.16"	0.368*	S135
DITCH WITCH	JT1720/1720V	118"±0.5"	2.063"±0.31"	2.5"	0.27"	S135
	JT2020	118"±0.5"	2.063"±0.31"	2.625*	0.27*	S135
	JT2720/2720V	118"±0.5"	2.375"±0.31"	2.75*	0.28"	S135
	JT2720M1	118"±0.5"	2.375"±0.31"	3	0.28%	S135
	JT4020	117.2"±0.5"	2.875"±0.31"	3.25"	0.362*	S135
	JT4020M1	117.2"±0.5"	2.875"±0.31"	3.5"	0.362*	S135
	JT7020	117.2"±0.5"	3.5"±0.31"	4"	0.368*	S135

About us

BaiWei is well known in HDD tools, DTH tools, top hammer, rotary tools, ...and so on. We are serving the drilling industry in mining, construction and energy with different application. Our vision is to be market leader in related industry with innovation and customer orientation.
BaiWei has 20 year's experience in manufacturing drill pipe for the Chinese and international markets. Sales in 2018 are approaching 250,000 pipes, and we are to lift capacity to well in excess of 300,000 pipes in 2019.

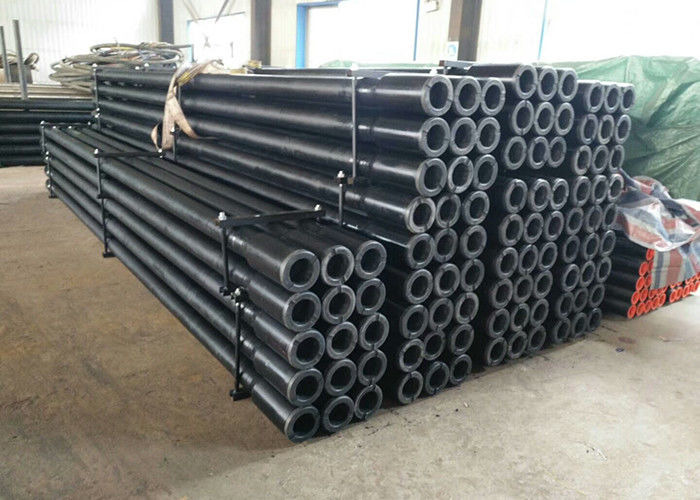

120inch Length 2.6inch Tool Joint OD Hdd Drill Pipe Non Leakage 0

120inch Length 2.6inch Tool Joint OD Hdd Drill Pipe Non Leakage 1

Our Services:

Drill pipe strictly according to API ISO9001 standard.
If you found to quality problems within one month of the package returned. All strictly according to the contract and fulfill the obligations and responsibilities
24 hours online customer service,feel free contact us.
