Product Details:
|
| Product Name: | Pneumatic Pipe Ramming Hammer | Applicable Industries: | Energy & Mining |
|---|---|---|---|
| Type: | Ramming Hammer | Machine Type: | Drilling Equipment |
| Material: | Carbon Steel | Processing Type: | Forging / Casting |
| Use: | Well Drilling | Model: | BH350 |
| Host Outer Diameter (mm): | 350/365 | Host Length (mm): | 2400 |
| Host Weight (kg): | 1200 | Air Consumption (m3/min): | 6~17 |
| Air Pressure (MPa): | 0.4-0.7 | Instant Maximum Impact (kN): | 6000 |
| Applicable Pipe Laying Diameter (mm): | 273-Φ820 | Standard Pipe Laying Diameter (mm): | 426,529,630 |
| High Light: | 6000kn Pneumatic Pipe Rammer,L2400mm Pneumatic Pipe Rammer |
||

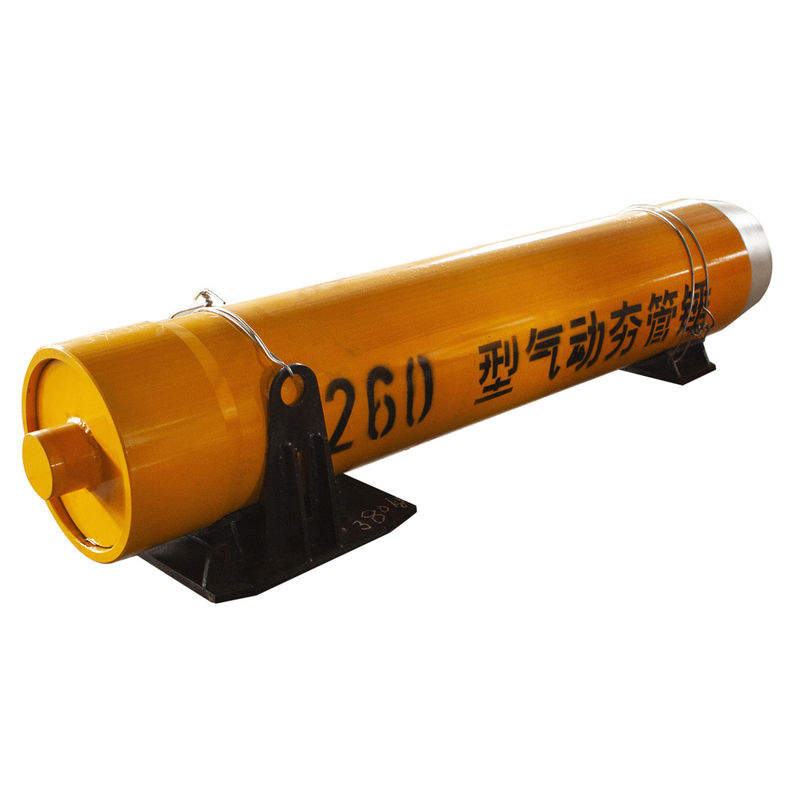

Carbon Steel Pneumatic Pipe Ramming Hammer For Well Drilling
Product Description
BH Series Pneumatic Rammer, is a new equipment used for trenchless laying pipelines underground, suitable for the clay layer, sub-clay layer, sand gravel soil, miscellaneous formation to lay down pipeline which diameter less than 1200mm, and in the short distance.
| Model | Host outer diameter (mm) | Host length (mm) | Host weight (kg) | Air consumption (m3/min) | Air pressure (MPa) | Instant maximum impact (kN) | Applicable pipe laying diameter (mm) | Standard pipe laying diameter (mm) |
| BH190S | 186/194 | 1320 | 160 | 2-6 | 0.4-0.7 | 1500 | 89-273 | 108,159,219 |
| BH260 | 260/265 | 1390 | 320 | 3-8 | 0.4-0.7 | 2600 | 159-426 | 273,325,426 |
| BH300 | 290/300 | 2100 | 750 | 4-11 | 0.4-0.7 | 4500 | 219-630 | 325,426,529 |
| BH350 | 350/365 | 2400 | 1200 | 6~17 | 0.4-0.7 | 6000 | 273-Φ820 | 426,529,630 |
| BH420 | 415/425 | 2800 | 1950 | 9-21 | 0.4-0.7 | 8000 | 325-1200 | 426,529,630 |
| BH510 | 510/520 | 3200 | 3400 | 12-28 | 0.4-0.7 | 12000 | 426~1500 | 630,720,820 |
| BH610 | 610/620 | 3400 | 5100 | 20-40 | 0.4-0.7 | 20000 | 529-1800 | 820,920,1020 |
| BH650 | 620/650 | 3600 | 5500 | 20-50 | 0.4-0.9 | 25000 | 529~2200 | 820,920,1020 |
| BH750 | 700/740 | 3870 | 8000 | 28-70 | 0.4-0.9 | 32000 | 630-2800 | 1020,1120,1220 |
| BH850 | 800/850 | 4640 | 12000 | 35-96 | 0.4-0.9 | 45000 | 720-3200 | 1320,1320,1420 |
Advantage
Anvil after clamping
The back anvil is the mark of BAIWEI perforation tool design. The clamping load provided by this function is 200% higher than that of competing products, making it the safest component on the market.
Push chuck
The BAIWEI tamper tool can be set into a conical locking chuck, thereby reducing the time for setting up and disassembly. The chuck can be fully engaged with the steel housing by 6 inches (152 mm), thereby firmly locking the tip of the knife on the housing, eliminating the need for a support frame, and reducing the opening of the sleeve, thereby saving working time.
Accessories
BAIWEI provides a wide range of ramming accessories, such as lubrication systems, seal kits, balanced collet lifters, pipe pigs and plunger sleeves. All these are designed to make your next job more efficient.
Our Services
1. The drill pipe is strictly in accordance with API ISO9001 standard
2. If you find quality problems within one month after returning the package.
3. All fulfill obligations and responsibilities in strict accordance with the contract
4. 24 hours online customer service, please feel free to contact us.
