BH650 2500T Impact Pneumatic Pipe Rammer Hammer

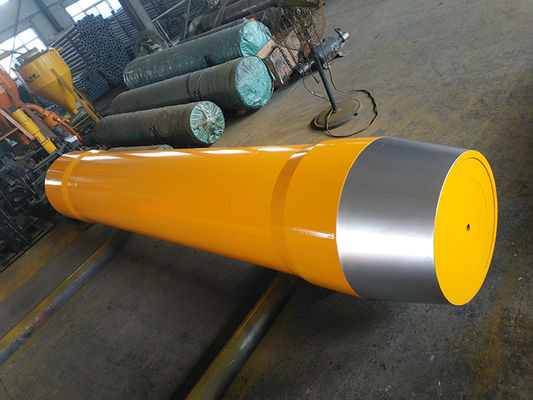

Large Image : BH650 2500T Impact Pneumatic Pipe Rammer Hammer

Product Details:

Place of Origin:	Hebei China
Brand Name:	BaiWei
Certification:	ISO9001
Model Number:	BH650

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	According to customer needs
Delivery Time:	7-15 working days, which will be adjusted according to different products and inventory
Payment Terms:	T/T
Supply Ability:	10 Sets/month

Contact Now

BH650 2500T Impact Pneumatic Pipe Rammer Hammer

Description

Product Name:	Pneumatic Pipe Ramming Hammer	Applicable Industries:	Energy & Mining
Type:	Ramming Hammer	Machine Type:	Drilling Equipment
Material:	Carbon Steel	Processing Type:	Forging / Casting
Use:	Well Drilling	Model:	BH650
Host Outer Diameter (mm):	620/650	Host Length (mm):	3600
Host Weight (kg):	5500	Air Consumption (m3/min):	20-50
Air Pressure (MPa):	0.4-0.7	Instant Maximum Impact (kN):	25000
Applicable Pipe Laying Diameter (mm):	529~2200	Standard Pipe Laying Diameter (mm):	820,920,1020
Highlight:	3600mm Pneumatic Pipe Rammer Hammer , 3600mm pipe rammer kit , 25000kN Pneumatic Pipe Rammer Hammer

BH650 2500T Impact Pneumatic Pipe Rammer Hammer

Product Description

In the field of trenchless laying of underground pipelines, pneumatic tamping pipeline laying technology is accepted by most construction units due to its simple structure, high precision, high speed, and low cost. It has become a preferred economical and fast construction method, and is widely used in the rescue of horizontal directional drilling projects and the construction of scaffolding.

Model	Host outer diameter (mm)	Host length (mm)	Host weight (kg)	Air consumption (m3/min)	Air pressure (MPa)	Instant maximum impact (kN)	Applicable pipe laying diameter (mm)	Standard pipe laying diameter (mm)
BH190S	186/194	1320	160	2-6	0.4-0.7	1500	89-273	108,159,219
BH260	260/265	1390	320	3-8	0.4-0.7	2600	159-426	273,325,426
BH300	290/300	2100	750	4-11	0.4-0.7	4500	219-630	325,426,529
BH350	350/365	2400	1200	6~17	0.4-0.7	6000	273-Φ820	426,529,630
BH420	415/425	2800	1950	9-21	0.4-0.7	8000	325-1200	426,529,630
BH510	510/520	3200	3400	12-28	0.4-0.7	12000	426~1500	630,720,820
BH650	620/650	3600	5500	20-50	0.4-0.9	25000	529-2200	820,920,1020
BH750	700/740	3870	8000	28~70	0.4-0.9	32000	630-2800	1020,1120,1220
BH850	800/850	4640	12000	35-96	0.4-0.9	45000	720-3200	1220,1320,1420

Advantage

Anvil after clamping
The back anvil is the mark of BAIWEI perforation tool design. The clamping load provided by this function is 200% higher than that of competing products, making it the safest component on the market.

Forward wear ring
The one-piece striker contains a set of wear rings that eliminate metal-to-metal contact, thereby providing a sustained level of performance.

Push chuck
The BAIWEI tamper tool can be set into a conical locking chuck, thereby reducing the time for setting up and disassembly. The chuck can be fully engaged with the steel housing by 6 inches (152 mm), thereby firmly locking the tip of the knife on the housing, eliminating the need for a support frame, and reducing the opening of the sleeve, thereby saving working time.

BH650 2500T Impact Pneumatic Pipe Rammer Hammer 0

This product is independently researched and developed by our company, and has applied for a patent certificate. It has more than ten years of production experience, and is constantly upgrading the product. The product quality has been unanimously recognized by the majority of consumers.
