Product Details:
|
| Origin:: | Hebei China | Processing Type: | Forging |
|---|---|---|---|
| Applicable Industries: | Energy & Mining, Deepwater Drilling | Type: | Drill Pipe |
| Advantage: | Reliable Material And Long Service Life | Section Shape: | Round/square |
| Standard: | API, API 5CT | Material: | Alloy Steel |
| Highlight: | api standard water well drill pipe,ingersoll rand water well drill pipe,api standard ingersoll rand drill pipe |
||

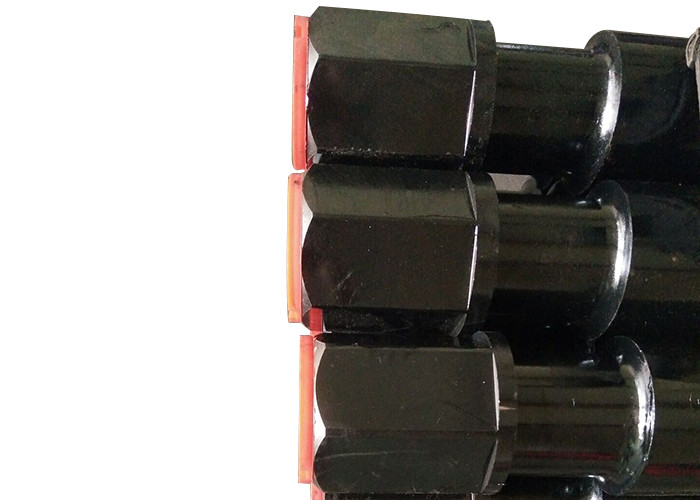

API Standard 4 1/2'' 8.56mm Drill Pipe R1 R2 For Water Well Drilling Manufacturers
Introduction
Long service life All threads and sealing surfaces should be phosphated to prevent sticking and corrosion. Wear straps and wear pads at the joints extend service life.
| Processing type | Forging |
| Machine type | Drilling Equipment |
| Type | Drill Pipe |
| Advantage | Reliable Material And Long Service Life |
| OD A | 4 1/2" |
| Wall B | 0.337" |
| Length L | 25' |
| Weight 1bs | 415 |
| Dist From ShoulderC | 3" |
| Across Flat E | 3 1/2" |
| Recess DIA F | 3 1/2" |
| Recess Location H | 3 1/2" |
| Recess Length K | 5" |
| Across Hex M | 3 3/8" |
| Connection | 4" |
| P/M | 3 1/2 Reg |
advantage
1. Alloy steel with a combination of hardness and wear resistance, provided by the country's top special steel manufacturers. (Tube thickness and material can be selected by the user).
2. Traditionally, the threads and joints between the pipe and the end piece are fragile. To address this, we friction welded the joints for maximum strength and heat treated the end pieces for optimum durability.
Drill pipe usage notes
1. New drill pipe should be pasted thread oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to costumer special requirement.
