5 Inch Length Integral Drill Rod , 670lbc API Casing DTH Drill Pipe

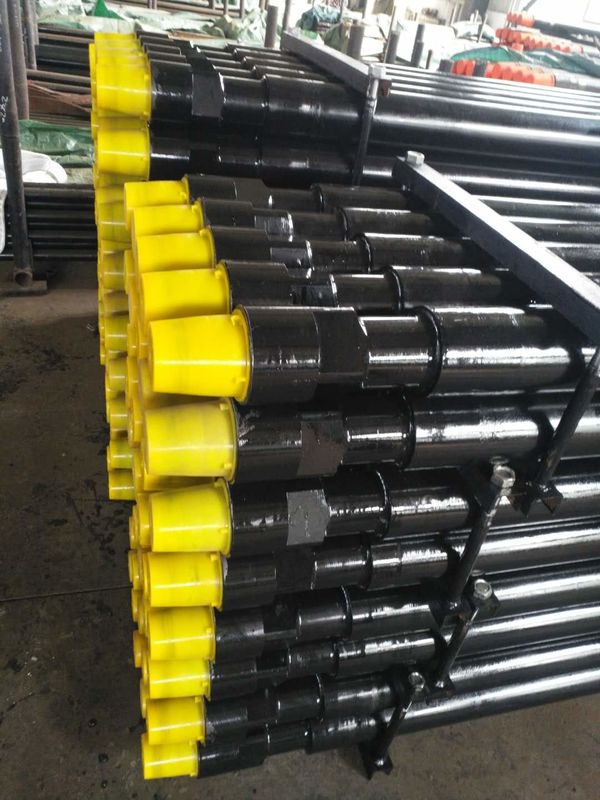

Large Image : 5 Inch Length Integral Drill Rod , 670lbc API Casing DTH Drill Pipe

Product Details:

Place of Origin:	Hebei China
Brand Name:	BaiWei

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	According to customer needs
Delivery Time:	20-30 working days, which will be adjusted according to different products and inventory
Payment Terms:	T/T

Contact Now

5 Inch Length Integral Drill Rod , 670lbc API Casing DTH Drill Pipe

Description

Processing Type:	Forging	Machine Type:	Drilling Equipment
Type:	Drill Pipe	Advantage:	Reliable Material And Long Service Life
OD A:	4 1/2"	Wall B:	0.500"
Length L:	30' 25' 20'	Weight 1bs:	670
Dist From ShoulderC:	3"	Across Flat E:	3 1/2"
Recess DIA F:	3 1/2"	Recess Location H:	3 1/2"
Recess Length K:	5"	Across Hex M:	3 3/8"
Connection:	4"	P/M:	3 1/2 Reg-2 7/8 IF
Highlight:	670lbc Integral Drill Rod , Integral Drill Rod 5inch , 670lbc DTH Drill Pipe

Forging Ingersoll Rand T4 Drill Pipe / Drill Rod Long Service Life

Description

It is used for sand control in wells with high pressure and high traction value due to the depths.
Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the cabapitities and high tensil strength Loads.
Pipe base can be made from API pipe Seamless casing spiral or stainless steel casing

Processing type	Forging
Machine type	Drilling Equipment
Type	Drill Pipe
Advantage	Reliable Material And Long Service Life
OD A	4 1/2"
Wall B	0.500"
Length L	30'
Weight 1bs	670
Dist From ShoulderC	3"
Across Flat E	3 1/2"
Recess DIA F	3 1/2"
Recess Location H	3 1/2"
Recess Length K	5"
Across Hex M	3 3/8"
Connection	4"
P/M	3 1/2 Reg

Products Advantages

Long service life

All threads and sealing surfaces shall be phosphated to prevent sticking and corrosion.

The wear-resistant belt and pad of the joint can prolong service life.

Strict process testing

100% of the friction welding areas pass the ultrasonic and magnetic particle inspection, and the hardness test is carried out in the heat affected zone.

High quality steel

Our drill rods are made of high-quality structural alloy steel, and after a special heat treatment process, they can meet the requirements of excavating harder rock layers and have a longer service life.

5 Inch Length Integral Drill Rod , 670lbc API Casing DTH Drill Pipe 0

Advanced manufacturing technology

The drill rods adopt advanced thread manufacturing technology and advanced surface treatment technology, and are manufactured according to precise tolerances.

They have the characteristics of tight connection, good energy transmission effect, strong wear resistance and easy disassembly.

Our Services

1. Drill pipe strictly according to API ISO9001 standard

2. If you found to quality problems within one month of the package returned.

3. All strictly according to the contract and fulfill the obligations and responsibilities

4. 24 hours online customer service,feel free contact us.
