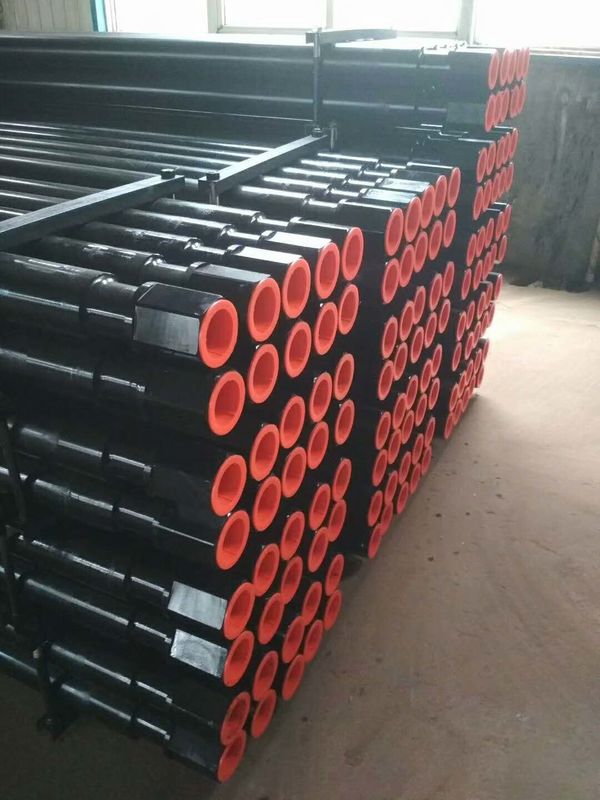

Ingersoll Rand API Water Well Tools All Type Water Well Drill Pipe
Description
It is used for sand control in wells with high pressure and high traction value due to the depths.
Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the cabapitities and high tensil strength Loads.
Pipe base can be made from API pipe Seamless casing spiral or stainless steel casing
| Processing type |
Forging |
| Machine type |
Drilling Equipment |
| Type |
Drill Pipe |
| Advantage |
Reliable Material And Long Service Life |
| OD A |
5" |
| Wall B |
0.362" |
| Length L |
25' |
| Weight 1bs |
520 |
| Dist From ShoulderC |
3" |
| Across Flat E |
3 1/2" |
| Recess DIA F |
3 1/2" |
| Recess Location H |
3 1/2" |
| Recess Length K |
5" |
| Across Hex M |
3 1/2" |
| Connection |
4" |
| P/M |
3 1/2 Reg |
OD
A |
Wall
B |
Length
L |
Weight
1bs |
Dist From
ShoulderC |
Across
Flat E |
Recess
DIA F |
Recess
Location H |
Recess
Length K |
Across Hex M |
Connection |
P/M |
| 4" |
0.33" |
25' |
365 |
3" |
3 1/2" |
3 1/2" |
3 1/2" |
5" |
3 3/4" |
3 1/2" |
2 7/8 Reg |
| 4" |
0.33" |
30' |
435 |
3" |
3 1/2" |
3 1/2" |
3 1/2" |
5" |
3 3/4" |
3 1/2" |
2 7/8 Reg |
| 4 1/2" |
0.337" |
25' |
415 |
3" |
3 1/2" |
3 1/2" |
3 1/2" |
5" |
3 3/8" |
4" |
3 1/2 Reg |
| 4 1/2" |
0.337" |
25' |
415 |
3" |
3 1/2" |
3 1/2" |
3 1/2" |
5" |
3 3/8" |
4" |
2 7/8 IF |
| 4 1/2" |
0.337" |
30' |
490 |
3" |
3 1/2" |
3 1/2" |
3 1/2" |
5" |
3 3/8" |
4" |
3 1/2 Reg |
| 4 1/2" |
0.337" |
30' |
490 |
3" |
3 1/2" |
3 1/2" |
3 1/2" |
5" |
3 3/8" |
4" |
27/8 IF |
| 4 1/2" |
0.500" |
30' |
670 |
3' |
3 1/2" |
3 1/2" |
3 1/2" |
5" |
3 3/8" |
4" |
3 1/2 Reg |
| 4 1/2" |
0.750" |
25' |
830 |
3" |
3 1/2" |
3 1/2" |
3 1/2" |
5" |
3 3/8" |
4" |
3 1/2 Reg |
| 4 1/2" |
0.750" |
30' |
990 |
3" |
3 1/2" |
3 1/2" |
3 1/2" |
5" |
3 3/8" |
4" |
3 1/2 Reg |
| 5" |
0.362" |
25' |
520 |
3" |
3 1/2" |
|3 1/2" |
3 1/2" |
5" |
3 1/2" |
4" |
3 1/2 Reg |
Products Advantages
Long service life
All threads and sealing surfaces shall be phosphated to prevent sticking and corrosion.
The wear-resistant belt and pad of the joint can prolong service life.
Production equipments imported from germany
Each heat treatment welding zone is quenched and tempered by heat treatment system to ensure the strength and toughness of the welding zone and the quality is stable.
Strict process testing
100% of the friction welding areas pass the ultrasonic and magnetic particle inspection, and the hardness test is carried out in the heat affected zone.
Advanced manufacturing technology
The drill rods adopt advanced thread manufacturing technology and advanced surface treatment technology, and are manufactured according to precise tolerances.
They have the characteristics of tight connection, good energy transmission effect, strong wear resistance and easy disassembly.
Application
Transportation of oil,gas or fluid,Construction,
Electricity,Machine building industy,
Chemical industy,Petroleum,Traffic.
Drill pipe quality control
1. Before order to be confirmed, the raw material of pipe body and tool joint should be booked from famous big steel enterprises in China.
2. Raw material’s size, quantity, length, mechanical property are checked by our QC staff and factory own laboratory.
3. Every drill pipe has nondestructive inspection , cleaned and thread oil before packing.
4. Before delivery clients could send one QC or point the third party to check the quality such SGS, BV or others.
