API Reg Pin 18inch Fluted HDD Barrel Reamer / Directional Drill Back Reamers

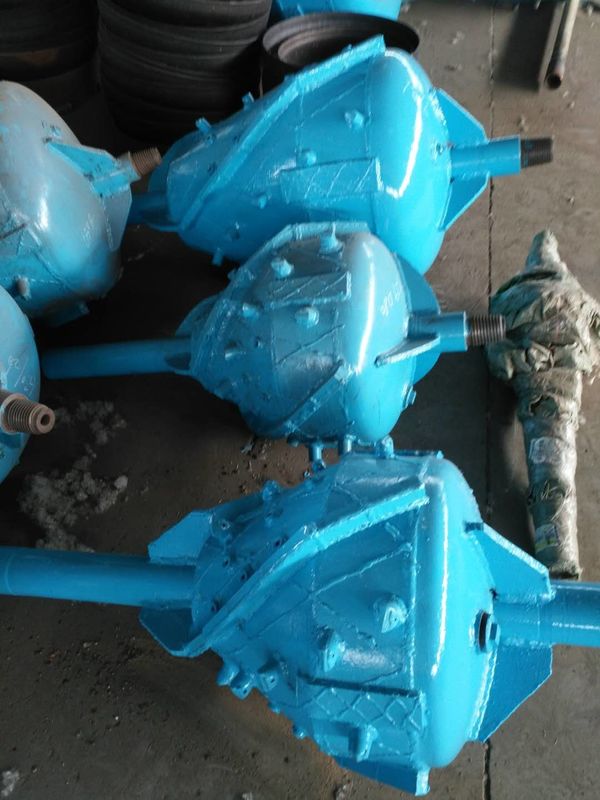

Large Image : API Reg Pin 18inch Fluted HDD Barrel Reamer / Directional Drill Back Reamers

Product Details:

Place of Origin:	Hebei China
Brand Name:	BaiWei

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	According to customer needs
Delivery Time:	20-30 working days, which will be adjusted according to different products and inventory
Payment Terms:	T/T

Contact Now

API Reg Pin 18inch Fluted HDD Barrel Reamer / Directional Drill Back Reamers

Description

Place Of Origin:	HeBei, China	Product Name:	HDD Barrel Reamer
Color:	Required	Material:	High Manganese Steel
Type:	HDD Back Reamer, Barrel, Fluted, Cutting, Fly Cutter	Usage:	HDD Projects
Size:	As You Requirement All Size	Application:	Well Drilling, Horizontal Directional Drilling
Machine Type:	Drilling Tool	Processing Type:	Casting
Highlight:	API Reg Pin Barrel Reamer , 18inch Barrel Reamer , API Directional Drill Back Reamers

Barrel Type Reamer With Good Quality And Competitive Price

Product Description

1. Heavy duty construction, ideal for HDD project to ream in rock formation.

2. Lager cutters, metal sealing ,long service life, can reach 300-400 hours.

3. Cutters body having an interlock mechanism does not produce cutters fall accident.

Barrel Reammer parameter list
serial number	1	2			3			4
serial number	specification D	dabber B	length C	length E	dabber B	length C	length E	dabber B	length C	length E
1	Φ159	Φ60	50	280	Φ68	50	330	Φ76	60	400
2	Φ219	Φ60	50	280	Φ68	50	330	Φ76	60	400
3	Φ273	Φ60	50	280	Φ68	50	330	Φ76	60	400
4	Φ325	Φ60	50	280	Φ68	50	330	Φ76	60	400
5	Φ425	Φ60	50	280	Φ68	50	330	Φ76	60	400
6	Φ529	Φ60	50	280	Φ68	50	330	Φ76	60	400
7	Φ630	Φ60	50	280	Φ68	50	330	Φ76	60	400
8	Φ670	Φ60	50	280	Φ68	50	330	Φ76	60	400
9	Φ770	Φ60	50	280	Φ68	50	330	Φ76	60	400
10	Φ870	Φ60	50	280	Φ68	50	330	Φ76	60	400
11	Φ1000							Φ76	60	400
12	Φ1100							Φ76	60	400
13	Φ1200							Φ76	60	400
14	Φ1300
15	Φ1400
16	Φ1500
17	Φ1600
18	Buckle type A	Φ50 drill pipe buckles are recommended			Φ60 drill pipe buckles are recommended			Φ73 drill pipe buckles are recommended

serial number	1	5			6			7
serial number	specification D	dabber B	length C	length E	dabber B	length C	length E	dabber B	length C	length E
1	Φ159	Φ89	80	450	Φ95	80	450	Φ102	110	450
2	Φ219	Φ89	80	450	Φ95	80	450	Φ102	110	450
	Φ273	Φ89	80	450	Φ95	80	450	Φ102	110	450
	Φ325	Φ89	80	450	Φ95	80	450	Φ102	110	450
5	Φ425	Φ89	80	450	Φ95	80	450	Φ102	110	500
6	Φ529	Φ89	80	450	Φ95	80	450	Φ102	110	500
7	Φ630	Φ89	80	450	Φ95	80	450	Φ102	110	500
8	Φ670	Φ89	80	450	Φ95	80	450	Φ102	110	500
9	Φ770	Φ89	80	450	Φ95	80	450	Φ102	110	500
10	Φ870	Φ89	80	450	Φ95	80	450	Φ102	110	500
11	Φ1000	Φ89	80	450	Φ95	80	450	Φ102	110	500
12	Φ1100	Φ89	80	450	Φ95	80	450	Φ102	110	500
13	Φ1200	Φ89	80	450	Φ95	80	450	Φ102	110	500
14	Φ1300	Φ89	80	450	Φ95	80	450	Φ102	110	500
15	Φ1400							Φ102	110	500
16	Φ1500							Φ102	110	500
17	Φ1600							Φ102	110	500
18	Buckle type A	Φ73/76drill pipe buckles are recomended			Φ83 drill pipe buckles are recommended			Φ89 drill pipe buckles are recompended

serial number	1	8			9			10
serial number	specification D	dabber B	length C	length E	dabber B	length C	length E	dabber B	length C	length E
1	Φ159
2	Φ219	108	110	450
3	Φ273	Φ108	110	450
4	Φ325	108	110	450	Φ121	110	550
5	Φ425	108	110	500	Φ121	110	550	Φ127	110	550
6	Φ529	Φ108	110	500	Φ121	110	550	Φ127	110	550
7	Φ630	Φ108	110	500	121	110	550	Φ127	110	550
8	Φ670	Φ108	110	500	Φ121	110	550	Φ127	110	550
9	Φ770	Φ108	110	500	Φ121	110	550	127	110	550
10	Φ870	Φ108	110	500	Φ121	110	600	Φ127	110	600
11	Φ1000	108	110	500	Φ121	110	600	Φ127	110	600
12	Φ1100	Φ108	110	500	Φ121	110	600	Φ127	110	600
13	Φ1200	Φ108	110	500	Φ121	110	600	Φ127	110	600
14	Φ1300	Φ108	110	500	Φ121	110	600	Φ127	110	600
15	Φ1400	108	110	500	Φ121	110	600	Φ127	110	600
16	Φ1500	108	110	500	Φ121	110	600	Φ127	110	600
17	Φ1600	Φ108	110	500	Φ121	110	600	Φ127	110	600
18	Buckle type A	Φ89 drill pipe buckles are recommended			Φ102/Φ114drill pipe buckles are recommended			Φ114 drill pipe buckles are recommended

serial number	1	11			12
serial number	specification D	dabber B	length C	length E	dabber B	length C	length E
1	Φ159
2	Φ219
3	Φ273
4	Φ325
5	Φ425	Φ168	180	650	Φ194	200	700
6	Φ529	Φ168	180	650	Φ194	200	700
7	Φ630	Φ168	180	650	Φ194	200	700
8	Φ670	Φ168	180	650	Φ194	200	700
9	Φ770	Φ168	180	650	Φ194	200	700
10	Φ870	Φ168	180	650	Φ194	200	700
11	Φ1000	Φ168	180	650	Φ194	200	700
12	Φ1100	Φ168	180	650	Φ194	200	700
13	Φ1200	Φ168	180	650	Φ194	200	700
14	Φ1300	Φ168	180	650	Φ194	200	700
15	Φ1400	Φ168	180	650	Φ194	200	700
16	Φ1500	Φ168	180	650	Φ194	200	700
17	Φ1600	Φ168	180	650	Φ194	200	700
18	Buckle type A	Φ114/Φ127 drill pipe buckles are recommended			140 drill pipe buckles are reconended

Product Advantages

Optimized structure & ingenious design, faster driling, speed

Premium roller cone cutters (optional for different crossing)

Enhanced TCl protection on heel of cones and ammback

Bunched tungsten carbide protection on body

Bunched tungsten carbide protection on stabilizer

Heavy duty dril collar from petroleum industry

API Reg Pin 18inch Fluted HDD Barrel Reamer / Directional Drill Back Reamers 0

FAQ

Q: What is your delivery time?

A: It usually takes 20 days to produce. Within 3 days (if there is stock).

Q: How to control the quality?

A: Before shipping, we should check and test each drill rod.

Q: Do you agree to order samples?

A: Yes, we welcome your sample order to test our quality.

Q: Has your drill pipe been heat treated?

A: Yes, our heat treatment of drill pipe and casing.

Q: Does your drill pipe have anti-rust function?

A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
