Soft Layer 16 Inches Trenchless Drilling Hole Opener Reamer

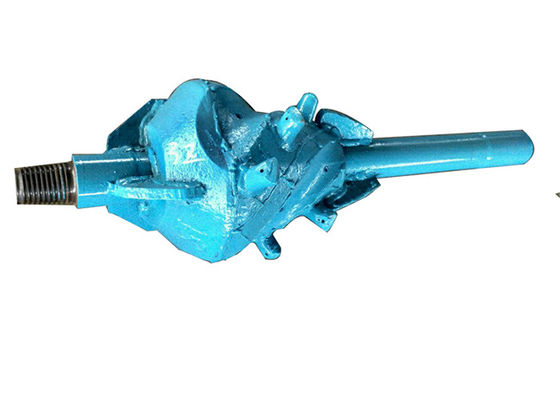

Large Image : Soft Layer 16 Inches Trenchless Drilling Hole Opener Reamer

Product Details:

Place of Origin:	Hebei China
Brand Name:	BaiWei

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	According to customer needs
Delivery Time:	20-30 working days, which will be adjusted according to different products and inventory
Payment Terms:	T/T

Contact Now

Soft Layer 16 Inches Trenchless Drilling Hole Opener Reamer

Description

Material:	Plastic And Steel	Machine Type:	Reamers
Coating:	Customized	Color:	Coating On Requests
Specification:	Φ500	Dabber:	Φ89
Length:	80 / 450	Buckle Type:	Φ73/76drill Pipe Buckles Are Recommended
Highlight:	Soft Layer Hole Opener Reamer , 16 Inches Hole Opener Reamer , Trenchless Drilling directional drill reamer

Hdd Reamer Hole Opener Reamer For Soft Layer

Product Description

Drum reamer, groove reamer and plate reamer

Drum reamer, groove reamer and plate reamer are used for trenchless drilling in soil

Floor. Our product specifications are drum reamer φ500mm-φ2000mm, flow reamer

φ200mm-φ2000mm and plate reamer φ300mm-φ2000mm.

serial number	1	2			3			4
serial number	Specification (D)	Dabber (B)	Length (C)	Length (E)	Dabber (B)	Length (C)	Length (E)	Dabber (B)	Length (C)	Length (E)
1	Φ200	60	50	280	68	50	330	Φ76	60	400
2	Φ250	Φ60	50	280	Φ68	50	330	Φ76	60	400
3	Φ300	60	50	280	68	50	330	Φ76	60	400
4	Φ400	Φ60	50	280	68	50	330	Φ76	60	400
5	500	Φ60	50	280	Φ68	50	330	76	60	400
6	Φ600	Φ60	50	280	Φ68	50	330	Φ76	60	400
7	Buckle type (A)	Φ50 drill pipe buckles are recommended			60 drill pipe buckles are recommended			73 drill pipe buckles are recommended

serial number	1	5			6			7
serial number	Specification (D)	Dabber (B)	Length (C)	Length (E)	Dabber (B)	Length (C)	Length (E)	Dabber (B)	Length (C)	Length (E)
1	Φ200	Φ89	80	450	95	80	450	Φ102	110	450
2	Φ250	Φ89	80	450	95	80	450	Φ102	110	450
3	Φ300	Φ89	80	450	95	80	450	Φ102	110	450
4	Φ400	Φ89	80	450	95	80	450	Φ102	110	500
5	Φ500	Φ89	80	450	95	80	450	Φ102	110	500
6	Φ600	Φ89	80	450	Φ95	80	450	Φ102	110	500
7	Buckle type (A)	Φ73/76drill pipe buckles are recommended			Φ83 drill pipe buckles are recommended			Φ89 drill pipe buckles are recommended

serial number	1	8			9			10
serial number	Specification (D)	Dabber (B)	Length (C)	Length (E)	Dabber (B)	Length (C)	Length (E)	Dabber (B)	Length (C)	Length (E)
1	Φ200	Φ108	110	450
2	250	Φ108	110	450
3	Φ300	108	110	450	Φ121	110	550
4	Φ400	Φ108	110	500	Φ121	110	550	Φ127	110	550
5	Φ500	Φ108	110	500	Φ121	110	550	Φ127	110	550
	Φ600	Φ108	110	500	Φ121	110	550	Φ127	110	550
7	Buckle type (A)	Φ89 drill pipe buckles are recommended			Φ102/Φ114drill pipe buckles are recommended			Φ114 drill pipe buckles are recommended

serial number	1	11			12
serial number	Specification (D)	Dabber (B)	Length (C)	Length (E)	Dabber (B)	Length (C)	Length (E)
1	Φ200	Φ108	110	450
2	250
3	Φ300
4	Φ400	Φ168	180	650	Φ194	200	700
5	Φ500	168	180	650	Φ194	200	700
6	600	Φ168	180	650	194	200	700
7	Buckle type (A)	Φ114/Φ127 drill pipe buckles are recommended			Φ140 drill pipe buckles are recommended

Available size

There are many advantages to choosing a groove reamer. When you shop around, keep in mind that many companies only offer casting options for models up to 16 inches. And we will provide a variety of size options and support customization, you can customize according to your needs.

Soft Layer 16 Inches Trenchless Drilling Hole Opener Reamer 0

About us

Langfang Budweiser Drilling Co., Ltd. is located in the center of Beijing, Tianjin and Hebei-Yongqing Industrial Zone. Langfang, Hebei.

Our company is a drilling tool manufacturing enterprise integrating design, geology, wellbore, double-wall, petroleum, auger and other special drill pipes. And non-excavation special drilling tools, such as pilot bits, rotors, reamers, fuel economizers, pneumatic tampers, and pipe blasting machines.

We specially invited the well-known domestic expert Mr. Zhou Shengfeng as the general manager, he is a technical consultant engaged in HDD drilling tools and processing technology. A strong research team has laid the foundation for product quality, new product development and after-sales service.
