Product Details:
|
| Material: | Plastic And Steel | Machine Type: | Reamers |
|---|---|---|---|
| Coating: | Customized | Color: | Coating On Requests |
| Specification: | Φ500 | Dabber: | Φ89 |
| Length: | 80 / 450 | Buckle Type: | Φ73/76drill Pipe Buckles Are Recommended |
| Highlight: | 89mm Dabber Directional Drill Back Reamers,Coating Color Directional Drill Back Reamers,89mm Dabber barrel reamer hdd |
||

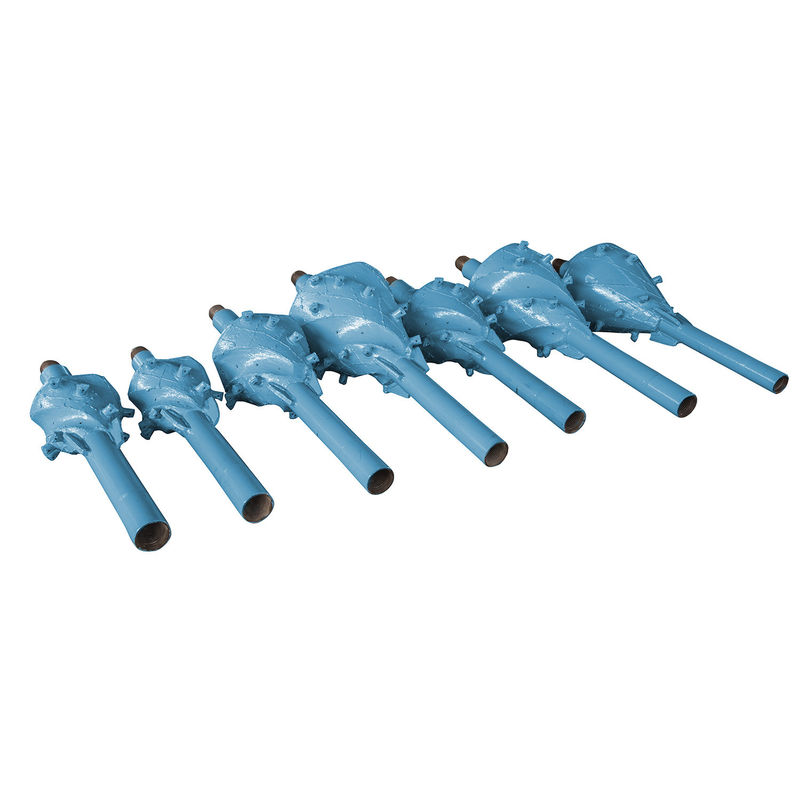

Horizontal Directional Drilling HDD Fluted Reamer
Product Description
The deep groove design effectively and efficiently guides the mud through the reamer and out of the wellbore.
Built-in rotary joint, pull back quickly and reliably.
Carbide inserts can enhance the cutting performance of the teeth.
Precisely positioned fluid ports, effective mixing and lubrication.
| serial number |
1 | 2 | 3 | 4 | ||||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | 60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 2 | Φ250 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | Φ76 | 60 | 400 |
| 3 | Φ300 | 60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 4 | Φ400 | Φ60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 5 | 500 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | 76 | 60 | 400 |
| 6 | Φ600 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | Φ76 | 60 | 400 |
| 7 | Buckle type (A) | Φ50 drill pipe buckles are recommended |
60 drill pipe buckles are recommended |
73 drill pipe buckles are recommended |
||||||
| serial number |
1 | 5 | 6 | 7 | ||||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 2 | Φ250 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 3 | Φ300 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 4 | Φ400 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 500 |
| 5 | Φ500 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 500 |
| 6 | Φ600 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ102 | 110 | 500 |
| 7 | Buckle type (A) | Φ73/76drill pipe buckles are recommended |
Φ83 drill pipe buckles are recommended |
Φ89 drill pipe buckles are recommended |
||||||
| serial number |
1 | 8 | 9 | 10 | ||||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | Φ108 | 110 | 450 | ||||||
| 2 | 250 | Φ108 | 110 | 450 | ||||||
| 3 | Φ300 | 108 | 110 | 450 | Φ121 | 110 | 550 | |||
| 4 | Φ400 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 |
| 5 | Φ500 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 |
| Φ600 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 | |
| 7 | Buckle type (A) | Φ89 drill pipe buckles are recommended |
Φ102/Φ114drill pipe buckles are recommended |
Φ114 drill pipe buckles are recommended |
||||||
| serial number |
1 | 11 | 12 | ||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | Φ108 | 110 | 450 | |||
| 2 | 250 | ||||||
| 3 | Φ300 | ||||||
| 4 | Φ400 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 5 | Φ500 | 168 | 180 | 650 | Φ194 | 200 | 700 |
| 6 | 600 | Φ168 | 180 | 650 | 194 | 200 | 700 |
| 7 | Buckle type (A) | Φ114/Φ127 drill pipe buckles are recommended |
Φ140 drill pipe buckles are recommended |
||||
Design
Cast body design
A cast fluted reamer body is formed by pouring molten metal into a mold. When the metal cools, and the mold is removed, what is left is a single solid flute body. While the molds come at a significant investment for manufacturers, each reamer produced is identical and balanced for optimal performance. A drill spud is inserted into the reamer and is welded securely.
Fabricated body design
Fabricated fluted reamer bodies are built by welding together several pieces of metal onto a drill spud. It’s a highly manual process that requires skill and attention to detail. If a fabricated reamer isn’t balanced, it may not rotate rotation evenly in the hole and potentially cause premature wear.
