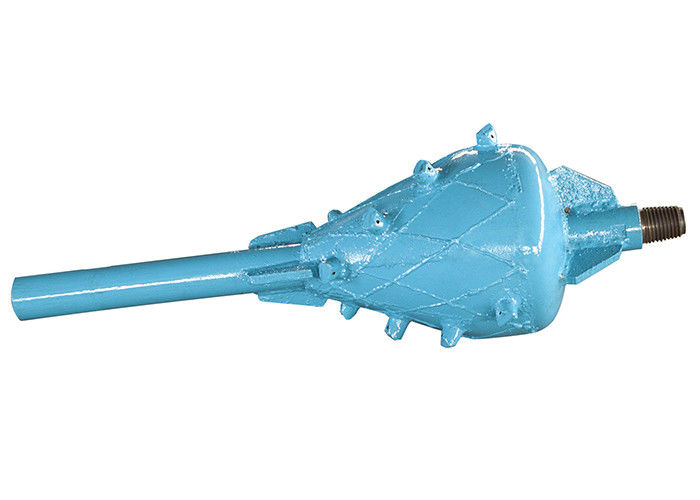

400mm HDD Flute Reamer With Swivel Built In
Product Description
Drum reamer, groove reamer and plate reamer
Drum reamer, groove reamer and plate reamer are used for trenchless drilling in soil
Floor. Our product specifications are drum reamer φ500mm-φ2000mm, flow reamer
φ200mm-φ2000mm and plate reamer φ300mm-φ2000mm.
serial
number |
1 |
2 |
3 |
4 |
| Specification (D) |
Dabber (B) |
Length (C) |
Length (E) |
Dabber (B) |
Length (C) |
Length (E) |
Dabber (B) |
Length (C) |
Length (E) |
| 1 |
Φ200 |
60 |
50 |
280 |
68 |
50 |
330 |
Φ76 |
60 |
400 |
| 2 |
Φ250 |
Φ60 |
50 |
280 |
Φ68 |
50 |
330 |
Φ76 |
60 |
400 |
| 3 |
Φ300 |
60 |
50 |
280 |
68 |
50 |
330 |
Φ76 |
60 |
400 |
| 4 |
Φ400 |
Φ60 |
50 |
280 |
68 |
50 |
330 |
Φ76 |
60 |
400 |
| 5 |
500 |
Φ60 |
50 |
280 |
Φ68 |
50 |
330 |
76 |
60 |
400 |
| 6 |
Φ600 |
Φ60 |
50 |
280 |
Φ68 |
50 |
330 |
Φ76 |
60 |
400 |
| 7 |
Buckle type (A) |
Φ50 drill pipe buckles are
recommended |
60 drill pipe buckles are
recommended |
73 drill pipe buckles are
recommended |
serial
number |
1 |
5 |
6 |
7 |
| Specification (D) |
Dabber (B) |
Length (C) |
Length (E) |
Dabber (B) |
Length (C) |
Length (E) |
Dabber (B) |
Length (C) |
Length (E) |
| 1 |
Φ200 |
Φ89 |
80 |
450 |
95 |
80 |
450 |
Φ102 |
110 |
450 |
| 2 |
Φ250 |
Φ89 |
80 |
450 |
95 |
80 |
450 |
Φ102 |
110 |
450 |
| 3 |
Φ300 |
Φ89 |
80 |
450 |
95 |
80 |
450 |
Φ102 |
110 |
450 |
| 4 |
Φ400 |
Φ89 |
80 |
450 |
95 |
80 |
450 |
Φ102 |
110 |
500 |
| 5 |
Φ500 |
Φ89 |
80 |
450 |
95 |
80 |
450 |
Φ102 |
110 |
500 |
| 6 |
Φ600 |
Φ89 |
80 |
450 |
Φ95 |
80 |
450 |
Φ102 |
110 |
500 |
| 7 |
Buckle type (A) |
Φ73/76drill pipe buckles
are recommended |
Φ83 drill pipe buckles are
recommended |
Φ89 drill pipe buckles are
recommended |
serial
number |
1 |
8 |
|
|
9 |
|
|
10 |
|
|
| Specification (D) |
Dabber (B) |
Length (C) |
Length (E) |
Dabber (B) |
Length (C) |
Length (E) |
Dabber (B) |
Length (C) |
Length (E) |
| 1 |
Φ200 |
Φ108 |
110 |
450 |
|
|
|
|
|
|
| 2 |
250 |
Φ108 |
110 |
450 |
|
|
|
|
|
|
| 3 |
Φ300 |
108 |
110 |
450 |
Φ121 |
110 |
550 |
|
|
|
| 4 |
Φ400 |
Φ108 |
110 |
500 |
Φ121 |
110 |
550 |
Φ127 |
110 |
550 |
| 5 |
Φ500 |
Φ108 |
110 |
500 |
Φ121 |
110 |
550 |
Φ127 |
110 |
550 |
| |
Φ600 |
Φ108 |
110 |
500 |
Φ121 |
110 |
550 |
Φ127 |
110 |
550 |
| 7 |
Buckle type (A) |
Φ89 drill pipe buckles are
recommended |
Φ102/Φ114drill pipe
buckles are recommended |
Φ114 drill pipe buckles are
recommended |
serial
number |
1 |
11 |
12 |
| Specification (D) |
Dabber (B) |
Length (C) |
Length (E) |
Dabber (B) |
Length (C) |
Length (E) |
| 1 |
Φ200 |
Φ108 |
110 |
450 |
|
|
|
| 2 |
250 |
|
|
|
|
|
|
| 3 |
Φ300 |
|
|
|
|
|
|
| 4 |
Φ400 |
Φ168 |
180 |
650 |
Φ194 |
200 |
700 |
| 5 |
Φ500 |
168 |
180 |
650 |
Φ194 |
200 |
700 |
| 6 |
600 |
Φ168 |
180 |
650 |
194 |
200 |
700 |
| 7 |
Buckle type (A) |
Φ114/Φ127 drill pipe
buckles are recommended |
Φ140 drill pipe buckles
are recommended |
Design
Casting design
The grooved reamer is formed by pouring molten metal into a mold. When the metal cools and the mold is removed, what is left is a single solid flute body. Although molds are a huge investment for manufacturers, every reamer produced is the same and balanced to achieve the best performance. Insert the drill bit into the reamer and weld it firmly.
Body design
The grooved reamer is manufactured by welding several pieces of metal to the drill bit. This is a highly manual process that requires skill and attention to detail. If the manufactured reamer is not balanced, it may not rotate evenly in the hole and may cause premature wear.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
