Product Details:
|
| Processing Type: | Forging | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Type: | Drill Pipe | Advantage: | Reliable Material And Long Service Life |
| OD A: | 4 1/2" | Wall B: | 0.500" |
| Length L: | 30' 25' 20' | Weight 1bs: | 670 |
| Dist From ShoulderC: | 3" | Across Flat E: | 3 1/2" |
| Recess DIA F: | 3 1/2" | Recess Location H: | 3 1/2" |
| Recess Length K: | 5" | Across Hex M: | 3 3/8" |
| Connection: | 4" | P/M: | 3 1/2 Reg-2 7/8 IF |
| Highlight: | S135 4 inch drill pipe,S135 friction welding drill pipe,4 inch Friction Welding Drill Pipe |
||

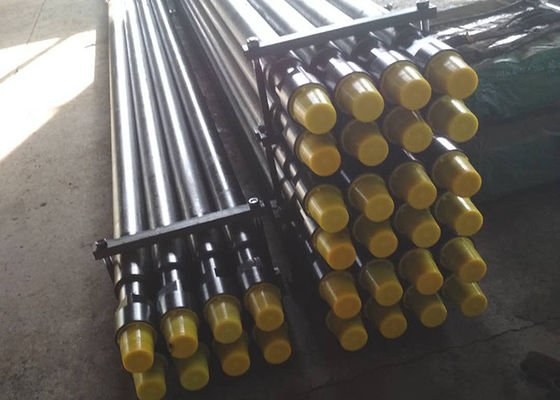

Long Service Life Ingersoll Rand Drill Pipe HDD Drill Rod 4" S135
Description
material
Structural alloy steel
application
Tunneling, mining, quarrying, blasting and infrastructure construction
Plane drilling and anchoring, bench drilling, production drilling, long hole drilling
Thread type
H22, R25, R28, R32, R35, R38, T38, T45, T51, GT60, ST58, ST68
Rod type
Extension rod, shunt rod, MF rod, MF drift rod, conduit, tapered drill rod, integral drill steel, plug hole integral rod
Body type
Hexagonal, round
Pole length
260mm~6440mm
Custom design
Thread, diameter, length, color can be customized
| OD A |
Wall B |
Length L |
Weight 1bs |
Dist From ShoulderC |
Across Flat E |
Recess DIA F |
Recess Location H |
Recess Length K |
Across Hex M | Connection | P/M |
| 4" | 0.33" | 25' | 365 | 3" | 3 1/2" | 3 1/2" | 3 1/2" | 5" | 3 3/4" | 3 1/2" | 2 7/8 Reg |
| 4" | 0.33" | 30' | 435 | 3" | 3 1/2" | 3 1/2" | 3 1/2" | 5" | 3 3/4" | 3 1/2" | 2 7/8 Reg |
| 4 1/2" | 0.337" | 25' | 415 | 3" | 3 1/2" | 3 1/2" | 3 1/2" | 5" | 3 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | 0.337" | 25' | 415 | 3" | 3 1/2" | 3 1/2" | 3 1/2" | 5" | 3 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | 0.337" | 30' | 490 | 3" | 3 1/2" | 3 1/2" | 3 1/2" | 5" | 3 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | 0.337" | 30' | 490 | 3" | 3 1/2" | 3 1/2" | 3 1/2" | 5" | 3 3/8" | 4" | 27/8 IF |
| 4 1/2" | 0.500" | 30' | 670 | 3' | 3 1/2" | 3 1/2" | 3 1/2" | 5" | 3 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | 0.750" | 25' | 830 | 3" | 3 1/2" | 3 1/2" | 3 1/2" | 5" | 3 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | 0.750" | 30' | 990 | 3" | 3 1/2" | 3 1/2" | 3 1/2" | 5" | 3 3/8" | 4" | 3 1/2 Reg |
| 5" | 0.362" | 25' | 520 | 3" | 3 1/2" | |3 1/2" | 3 1/2" | 5" | 3 1/2" | 4" | 3 1/2 Reg |
Products Advantages
High strength mechanical properties
Long service life
Production equipments imported from germany
Strict process testing
Application
Transportation of oil,gas or fluid,Construction,
Electricity,Machine building industy,
Chemical industy,Petroleum,Traffic.
Drill pipe quality control
1. Before order to be confirmed, the raw material of pipe and tool joint body should be booked from famous big steel enterprises in China.
2. Checked by our QC staff and factory own laboratory.
3. Every drill pipe has nondestructive inspection , cleaned and breach oil before packing.
4. Before delivery clients could send one QC or point the third party to check the quality such SGS, BV or others.
Our Services
1. Drill pipe strictly according to API ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
