Product Details:
|
| Name: | Hdd Drill Pipe | Diameter: | 127 Mm |
|---|---|---|---|
| Wall Thickness: | 9.19 Mm | Length: | 6 M |
| Tool Joint OD: | 168 Mm | Thread: | NC50 |
| Steel Grade: | S | Upset Forge: | IEU |
| Highlight: | 9.19mm Wall Thickness Spiral Drill Pipe,IEU Upset Forges Spiral Drill Pipe,9.19mm Wall Thickness hdd drill rods |
||

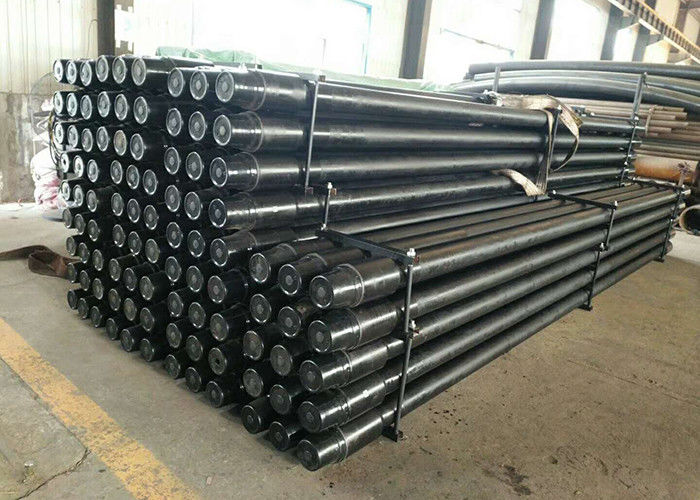

9.19 Mm Wall Thickness IEU Upset Forge HDD Drill Pipe
Product Detail
Product Description
Product Specifications
| Diameter | Wall Thickness | Length | Tool Joint OD | Upset Forge |
Thread | Steel Grade |
||||
| (mm) | (in) | (mm) | (in) | (m) | (ft) | (mm) | (in) | |||
| Φ127 | 5 | 9.19 | 0.36" | 6 | 19.69 | 168 | 6.63* | IEU | NC50 | G |
| 9 | 29.53 | |||||||||
| 12.7 | 0.5" | 9.6 | 31.50 | S | ||||||
Product series
| Brand | Model | Length(shoulder- to-shoulder) |
Outside Diameter |
Tool Joint OD | Wall Thickness | Steel Grade |
| CASE | Case6010 | 120"±0.5" | 1.9"±0.031" | 2.25*±0.16" | 0.24" | S135 |
| Case6030 | 120"±0.5" | 2.375"*0.031* | 2.625"±0.16" | 0.28" | S135 | |
| VERMEER | D10X15 | 120"±0.5" | 1.66"±0.31" | 1.88"±0.16" | 0.24" | S135 |
| D16x20/D18x22 | 120"±0.5" | 1.9"±0.31" | 2.125"±0.16" | 0.24" | S135 | |
| D24X40F/D24X40LW | 120"±0.5" | 2.375"±0.31" | 2.625"±0.16" | 0.28" | S135 | |
| D33X44ID40x40 | 180"±0.5" | 2.375"±0.31" | 2.625"±0.16" | 0.28" | S135 | |
| D50X100 | 180"±0.5" | 2.875"±0.31" | 3.25"±0.16" | 0.362" | S135 | |
| D80X100 | 180"±0.5" | 3.5"±0.31" | 3.625"±0.16" | 0.368 | S135 | |
| D100X120 | 240"±0.5" | 3.5"±0.31" | 4.125"±0.16" | 0.368* | S135 | |
| D130X120 | 240"±0.5" | 3.5"±0.31" | 4.125"±0.16" | 0.368* | S135 | |
| DITCH WITCH |
JT1720/1720V | 118"±0.5" | 2.063"±0.31" | 2.5" | 0.27" | S135 |
| JT2020 | 118"±0.5" | 2.063"±0.31" | 2.625* | 0.27* | S135 | |
| JT2720/2720V | 118"±0.5" | 2.375"±0.31" | 2.75* | 0.28" | S135 | |
| JT2720M1 | 118"±0.5" | 2.375"±0.31" | 3 | 0.28% | S135 | |
| JT4020 | 117.2"±0.5" | 2.875"±0.31" | 3.25" | 0.362* | S135 | |
| JT4020M1 | 117.2"±0.5" | 2.875"±0.31" | 3.5" | 0.362* | S135 | |
| JT7020 | 117.2"±0.5" | 3.5"±0.31" | 4" | 0.368* |
S135 |
| Diameter | Wall Thickness | Length | Weight | Tool Joint OD | Thread | Steel Grade | Torque Limit | Min.Bend Radius | ||||||
| (mm) | (in) | (mm) | (in) | (m) | (ft) | (Kg) | (mm) | (in) | (KN.m) | (Lb.ft) | (m) | (ft) | ||
| 50 | 2 | 6.5 | 0.256 | 2 | 6.56 | 17 | 53 | 2.09 | ZX50 | G | 2.9 | 2140 | 38 | 124.67 |
| 2.5 | 8.20 | 20 | S | 3 | 2214 | 30 | 98.43 | |||||||
| 60 | 2 3/8" | 7.1 | 0.28 | 2 | 6.56 | 23 | 68 | 2.68 | ZX60 | G | 6 | 4428 | 42 | 137.79 |
| 3 | 9.84 | 32 | S | 6.3 | 4650 | 33 | 108.27 | |||||||
| 73 | 2 7/8" | 8 | 0.315 | 3 | 9.84 | 43 | 78 | 3.23 | NC23 | G | 12 | 8856 | 58 | 190.29 |
| 4 | 13.12 | 57 | S | 13 | 9594 | 45 | 147.69 | |||||||
| 76 | 3 | 9 | 0.354 | 3 | 9.84 | 56 | 88 | 3.47 | NC26 | G | 14 | 10332 | 62 | 203.41 |
| 4 | 13.12 | 71 | S | 16.5 | 12177 | 56 | 183.73 | |||||||
| 83 | 3 1/4* | 9 | 0.354 | 3 | 9.84 | 57 | 92 | 3.62 | D80 NC26 |
G | 16.8 | 12398 | 73 | 239.50 |
| 4.5 | 14.76 | 79 | S | 18 | 13284 | 65 | 213.26 | |||||||
| 89 | 3 1/2" | 9.35 | 0.368 | 4.5 | 14.76 | 99 | 105 | 4.13 | NC31 | G | 22.3 | 16457 | 80 | 262.47 |
| 6 | 19.69 | 128 | S | |||||||||||
| 102 | 4 | 10 | 0.394 | 6 | 19.69 | 160 | 123 | 4.41 | NC38 | G | 38 | 28044 | 90 | 295.28 |
| S | 48 | 35424 | 82 | 296.03 | ||||||||||
| 114 | 4 1/2" | 10 | 0.394 | 6 | 19.69 | 162 | 127 | 5 | NC38 NC40 |
G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 | 295.28 | ||||||||||
| 114 | 4 1/2" | 10 | 0.394 | 6 | 19.69 | 178 | 157 | 6.18 | NC46 | G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 |
295.28 |
||||||||||
Our Services:
Drill pipe strictly according to API ISO9001 standard.
If you found to quality problems within one month of the package returned. All strictly according to the contract and fulfill the obligations and responsibilities
24 hours online customer service,feel free contact us.
About us
LangFang Baiwei Drill Co.,Ltd located in the center of Beijing, Tianjin and Hebei-Yongqing Industrial Area. Langfang Hebei.
Our company is a drilling tools manufacturing enterprisewith integration of design, geological, well, double wall, oil, auger and other special drilling pipes. And trenchless special drilling tools such as pilot guide bits,swivels, reamers, sub saver, pneumatic pipe rammer, pipe bursting machine.
