14 KN.M Torque Limit 76mm Diameter HDD Drill Pipe NC26 Thread

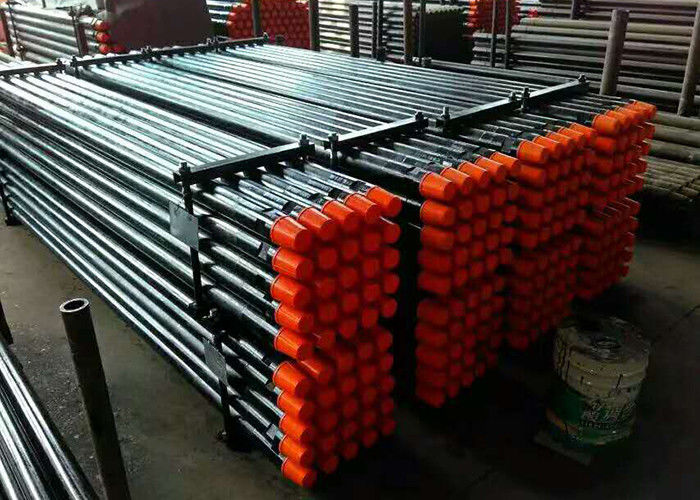

Large Image : 14 KN.M Torque Limit 76mm Diameter HDD Drill Pipe NC26 Thread

Product Details:

Place of Origin:	Hebei China
Brand Name:	Long way

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	With iron
Delivery Time:	20-30 working days, which will be adjusted according to different products and inventory
Payment Terms:	T/T

Contact Now

14 KN.M Torque Limit 76mm Diameter HDD Drill Pipe NC26 Thread

Description

Name:	Hdd Drill Pipe	Diameter:	76 Mm
Wall Thickness:	9 Mm	Length:	3 M
Weight:	56 Kg	Tool Joint OD:	88 Mm
Thread:	NC26	Steel Grade:	S
Torque Limit:	14 KN.m	Min.Bend Radius:	62 M
Highlight:	Double Top HDD Drill Pipe , 76mm Diameter HDD Drill Pipe , 14 KN.M Torque Limit directional drilling pipe

Double Ledge Structure Forged Connector HDD Drill Pipe

Product Detail

Model No.:DIA 50/DIA60/DIA73

Production Capacity:enough

Delivery Date:30 days after payment

Type:Drilling Rig

trenchless drill rod:HDD

Means of Transport:Ocean,Land,Air

Packing:with iron

Application:Others

Brand Name:Long way

Product Description

Drill pipe joints adopt the double ledge (double top) structure. Such structure can enhance the tightness of joints so that the pressure of the mud could realize non-leakage half-way. Greatly reduce the resistance to pilot drilling and back, using this structure improves the torsional strength of drill pipe so that the box thread will not deformed.

Product Specifications

Diameter		Wall Thickness		Length		Weight	Tool Joint OD		Thread	Steel Grade	Torque Limit		Min.Bend Radius
(mm)	(in)	(mm)	(in)	(m)	(ft)	(Kg)	(mm)	(in)			(KN.m)	(Lb.ft)	(m)	(ft)
76	3	9	0.354	3	9.84	56	88	3.47	NC26	G	14	10332	62	203.41
76	3	9	0.354	4	13.12	71	88	3.47	NC26	S	16.5	12177	56	183.73

Product series

Diameter		Wall Thickness		Length		Weight	Tool Joint OD		Thread	Steel Grade	Torque Limit		Min.Bend Radius
(mm)	(in)	(mm)	(in)	(m)	(ft)	(Kg)	(mm)	(in)			(KN.m)	(Lb.ft)	(m)	(ft)
50	2	6.5	0.256	2	6.56	17	53	2.09	ZX50	G	2.9	2140	38	124.67
				2.5	8.20	20				S	3	2214	30	98.43
60	2 3/8"	7.1	0.28	2	6.56	23	68	2.68	ZX60	G	6	4428	42	137.79
				3	9.84	32				S	6.3	4650	33	108.27
73	2 7/8"	8	0.315	3	9.84	43	78	3.23	NC23	G	12	8856	58	190.29
				4	13.12	57				S	13	9594	45	147.69
76	3	9	0.354	3	9.84	56	88	3.47	NC26	G	14	10332	62	203.41
				4	13.12	71				S	16.5	12177	56	183.73
83	3 1/4*	9	0.354	3	9.84	57	92	3.62	D80 NC26	G	16.8	12398	73	239.50
				4.5	14.76	79				S	18	13284	65	213.26
89	3 1/2"	9.35	0.368	4.5	14.76	99	105	4.13	NC31	G	22.3	16457	80	262.47
				6	19.69	128				S
102	4	10	0.394	6	19.69	160	123	4.41	NC38	G	38	28044	90	295.28
										S	48	35424	82	296.03
114	4 1/2"	10	0.394	6	19.69	162	127	5	NC38 NC40	G	50	36900	98	321.52
										S	64	47232	90	295.28
114	4 1/2"	10	0.394	6	19.69	178	157	6.18	NC46	G	50	36900	98	321.52
										S	64	47232	90	295.28

14 KN.M Torque Limit 76mm Diameter HDD Drill Pipe NC26 Thread 0

14 KN.M Torque Limit 76mm Diameter HDD Drill Pipe NC26 Thread 1

About us

BaiWei is well known in HDD tools, DTH tools, top hammer, rotary tools, ...and so on. We are serving the drilling industry in mining, construction and energy with different application. Our vision is to be market leader in related industry with innovation and customer orientation.
BaiWei has 20 year's experience in manufacturing drill pipe for the Chinese and international markets. Sales in 2018 are approaching 250,000 pipes, and we are to lift capacity to well in excess of 300,000 pipes in 2019.
