Product Details:
|
| Processing Type: | Forging | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Type: | Drill Pipe | Advantage: | Reliable Material And Long Service Life |
| OD A: | 4" | Wall B: | 0.33" |
| Length L: | 30' 25' 20' | Weight 1bs: | 365 |
| Dist From ShoulderC: | 3" | Across Flat E: | 3 1/2" |
| Recess DIA F: | 3 1/2" | Recess Location H: | 3 1/2" |
| Recess Length K: | 5" | Across Hex M: | 3 3/4" |
| Connection: | 3 1/2" | P/M: | 3 1/2 Reg-2 7/8 IF |
| Highlight: | 0.33inch oil well drilling pipe,2 7/8 IF oil well drilling pipe |
||

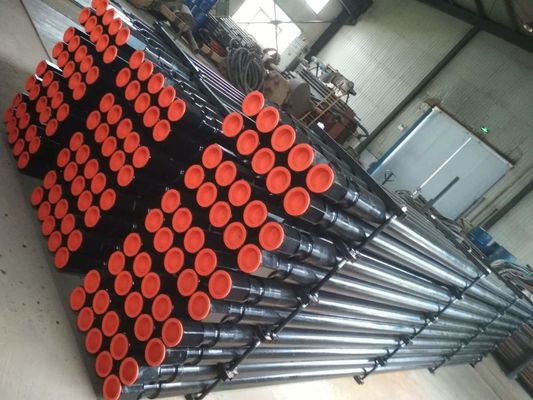

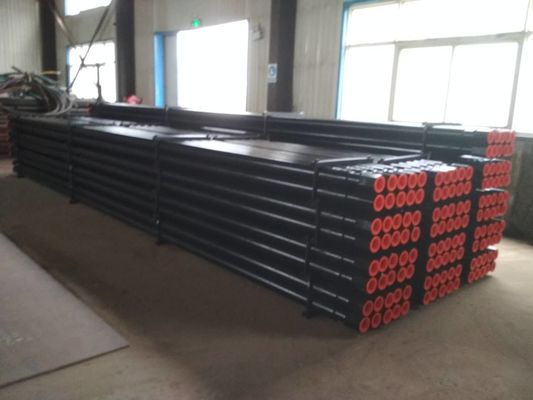

Forging Drilling Equipment Ingersoll Rand Drill Pipe
Description
It is used for sand control in wells with high pressure and high traction value due to the depths.
Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the cabapitities and high tensil strength Loads.
Pipe base can be made from API pipe Seamless casing spiral or stainless steel casing
| Processing type | Forging |
| Machine type | Drilling Equipment |
| Type | Drill Pipe |
| Advantage | Reliable Material And Long Service Life |
| OD A | 4" |
| Wall B | 0.33" |
| Length L | 25' |
| Weight 1bs | 365 |
| Dist From ShoulderC | 3" |
| Across Flat E | 3 1/2" |
| Recess DIA F | 3 1/2" |
| Recess Location H | 3 1/2" |
| Recess Length K | 5" |
| Across Hex M | 3 3/4" |
| Connection | 3 1/2" |
| P/M | 2 7/8 Reg |
Products Advantages
High strength mechanical properties
Long service life
Production equipments imported from germany
Strict process testing
High quality steel
Our drill rods are made of high-quality structural alloy steel, and after a special heat treatment process, they can meet the requirements of excavating harder rock layers and have a longer service life.
Our Services
1. Drill pipe strictly according to API ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
