Product Details:
|
| Name: | Double Wall Drill Pipe | Type: | Drill Pipe |
|---|---|---|---|
| Advantage: | High Quality And Factory Price | Color: | Request |
| Model: | WB114/52 | O.D. Of The Other Tube (mm): | 114 |
| Outer Dianeter Of Joint (mm): | 116 | Other Diameter Of Joint (mm): | 52 |
| Effective Length (m): | 6 | ||
| Highlight: | 114mm Od RC Drill Rods,high strength RC Drill Rods,114mm Od RC Drill pipe |
||

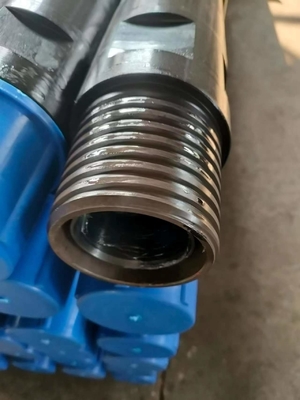

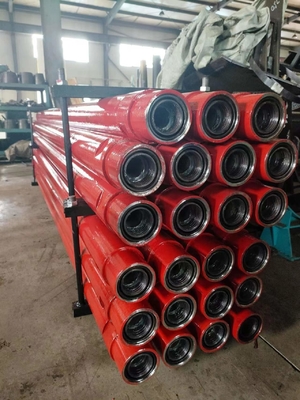

114mm Od RC Drill Rods for water well high grade steel
Product Description:
Double-arm drill pipe is also called double-layer drill pipe. It is composed of inner and outer drill pipes (called inner pipe and outer pipe). The inner and outer pipes form an annulus, which is a channel for pumping the flushing medium to the bottom of the hole during hydraulic rock drilling and center sampling drilling. The central hole of the inner tube is used to discharge the flushing medium and is integrally fixed, and the threaded button of the outer tube is connected between each double-wall drill pipe to ensure the transmission of torque and pressure. However, plug-in connections are often used between the inner pipes, which generally only serve as a circulating flushing medium. Therefore, a sealing device should be installed at the insertion point.
Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
Advantage
This series of reverse circulation pipes can increase the permeability of the lost stratum, reduce the consumption of drilling fluid, protect the reservoir stratum, and save the cost of other consumable tools. In addition, the pipeline can be drilled in two directions to control the drilling. The reverse circulation kill method can transfer heavy mud directly to the bottom of the well without periodic circulation, saving time.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-30 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need to pay the cost of products and freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
