4IF Type Threads DTH Heavy Double Wall Drill Pipe 6m Length

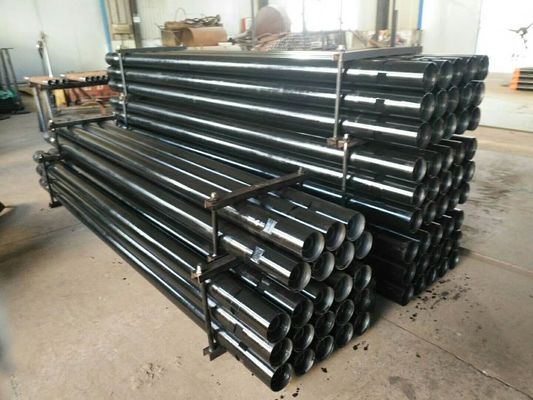

Large Image : 4IF Type Threads DTH Heavy Double Wall Drill Pipe 6m Length

Product Details:

Place of Origin:	Hebei China
Brand Name:	Long way

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	With iron
Delivery Time:	20-30 working days, which will be adjusted according to different products and inventory
Payment Terms:	T/T

Contact Now

4IF Type Threads DTH Heavy Double Wall Drill Pipe 6m Length

Description

Name:	Double Wall Drill Pipe	Type:	Drill Pipe
Color:	Request	Advantage:	High Quality And Factory Price
Model:	WB114/65	O.D. Of The Other Tube (mm):	114
Other Diameter Of Joint (mm):	65	Outer Dianeter Of Joint (mm):	156
Type Of Threads:	4IF	Effective Length (m):	6
Highlight:	41F Threads Double Wall Drill Pipe , 6m Length Double Wall Drill Pipe , 41F Threads Heavy Wall Drill Pipe

41F Type Of Threads Or Customized As Required Double Wall Drill Pipe

Product Description

In order to realize the reverse circulation drilling process of the through-the-hole DTH hammer, the matching drilling tool system mainly includes a double-wall drill rod. In addition to the through-the-hole DTH hammer used to realize the impact effect, a reverse circulation drill bit and a double channel are also required Faucet, and other auxiliary tools. The double-arm drill pipe is one of its core components

Double wall drill pipe

Type	O.D.of the outer tube (mm)	I.D.of the inner tube (mm)	Outer dianeter of joint (mm)	Type of threads	Effective length (m)
WB114/65	114	65	156	41F	6
WB127/76	127	76	162/168	41/21F	6 , 9.5
DB127/76	127	76	184	51/2FH	9.5
WB140/88	139.7	88	184	51/2FH	6,9.5
WB219/130	219	130	240	Factory standard	6,9.5
WK76/32	76	32	78	3" Remet	3
WK102/41	102	41	103	4" Remet	3 , 6
WK114/52	114.3	52	116	4 1/2" Remet	3 , 6
WK114/38	114.3	38	114.3	4 1/2" Metzke	3 , 6
WK114/50	114.3	50	114.3	4 1/2" Remet	3 , 6
WP50/20	50	20	50		1 , 1.5
WP73/35	73	35	73		1 , 1.5
WP89/40	89	40	89		1 , 1.5

Drill pipe usage notes:

1.New drill pipe should be pasted thread oil before connection

2.Make up and break at least 3 times before drilling

3.Hard bending and plastic coating can be processed according to costumer special requirement.

water well tubing

4IF Type Threads DTH Heavy Double Wall Drill Pipe 6m Length 0

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 7-30 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need to pay the cost of products and freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
