Product Details:
|
| Name: | Double Wall Drill Pipe | Type: | Drill Pipe |
|---|---|---|---|
| Color: | Request | Advantage: | High Quality And Factory Price |
| Model: | WK114/38 | O.D. Of The Other Tube (mm): | 114.3 |
| Other Diameter Of Joint (mm): | 38 | Outer Dianeter Of Joint (mm): | 114.3 |
| Type Of Threads: | 4 1/2"Metzke 4 1/2Remet | Effective Length (m): | 3,4.5， 6 |
| Highlight: | Reverse Circulation Drill Pipe Corrosion Resistant,rc Drill Pipe Corrosion Resistant,API SS Reverse Circulation Drill Pipe |
||

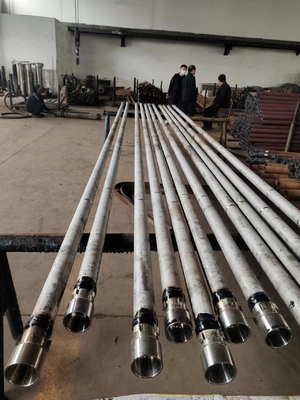

API Stainless steel reverse circulation drill pipe 114.3 * 6000 high strength corrosion resistance
Product Description
1. Name: Double wall drill pipe
2. Size: DP89/40-DP219/150
3. Standard: ISO API
4. Certification: ISO API
High-strength double-tube drill pipe for reverse air circulation drilling in open-pit mining.
The length can be set according to customer requirements, such as 1m, 1.5m, 2.0m, 3.0m, 4.5m, 6m, etc.
Diameter: 102mm, 108mm, 114mm, etc.
Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
| WP50/20 | 50 | 20 | 50 | 1 , 1.5 | |
| WP73/35 | 73 | 35 | 73 | 1 , 1.5 | |
| WP89/40 | 89 | 40 | 89 | 1 , 1.5 |
Optimal design
Drill rods through the dispersion of equal strength And stress optimal design, can give full play to the Potential of drill material.

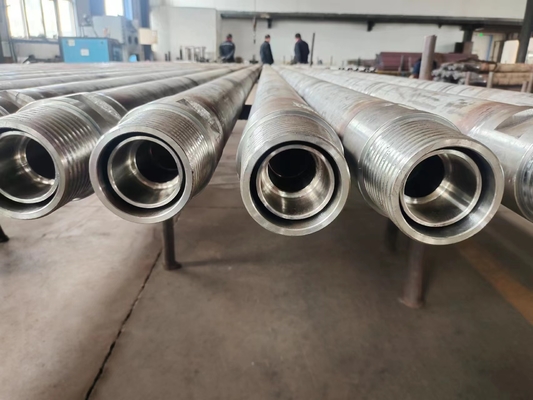

Forged connector
The connector material is forged, has an improved material density, and changes the fiber texture of the material, thereby greatly improving the general mechanical properties of the material. The end ensures that the thread is anti-corrosion, anti-sticking, and improves the fatigue resistance of the joint surface.
Application
It has applied successfully in gas exploration, drilling, geothermal well drilling and mine rescue hole and a ventilation hole construction, etc.
Applicable scope of reverse circulation drill pipe:
1 For water well drilling including complex formation, mud can be used as flushing fluid in the easily collapsed formation to protect the hole wall
2. It is especially suitable for drilling large diameter holes, such as gas drainage wells, coal mine rescue wells, coalbed gas wells and shale gas wells
3. It is not suitable for drilling in dry and leaky formations
