Product Details:
|
| Name: | Double Wall Drill Pipe | Type: | Drill Pipe |
|---|---|---|---|
| Color: | Request | Advantage: | High Quality And Factory Price |
| Model: | WB114/50 | O.D. Of The Other Tube (mm): | 114mm |
| Other Diameter Of Joint (mm): | 50mm | Outer Dianeter Of Joint (mm): | 114.3 |
| Effective Length (m): | 3000mm/6000mm | ||
| Highlight: | Double Wall Drill Pipe 102mm,Double Wall Drill Pipe Reverse Circulation,6000mm Length Double Wall Drill Pipe |
||
102mm High Steel Double Wall Drill Pipe Reverse Circulation 6000mm Longth
Manufacture of RC drill pipe/114mm reverse circulation drill pipe/double wall drill pipe
Product Description:

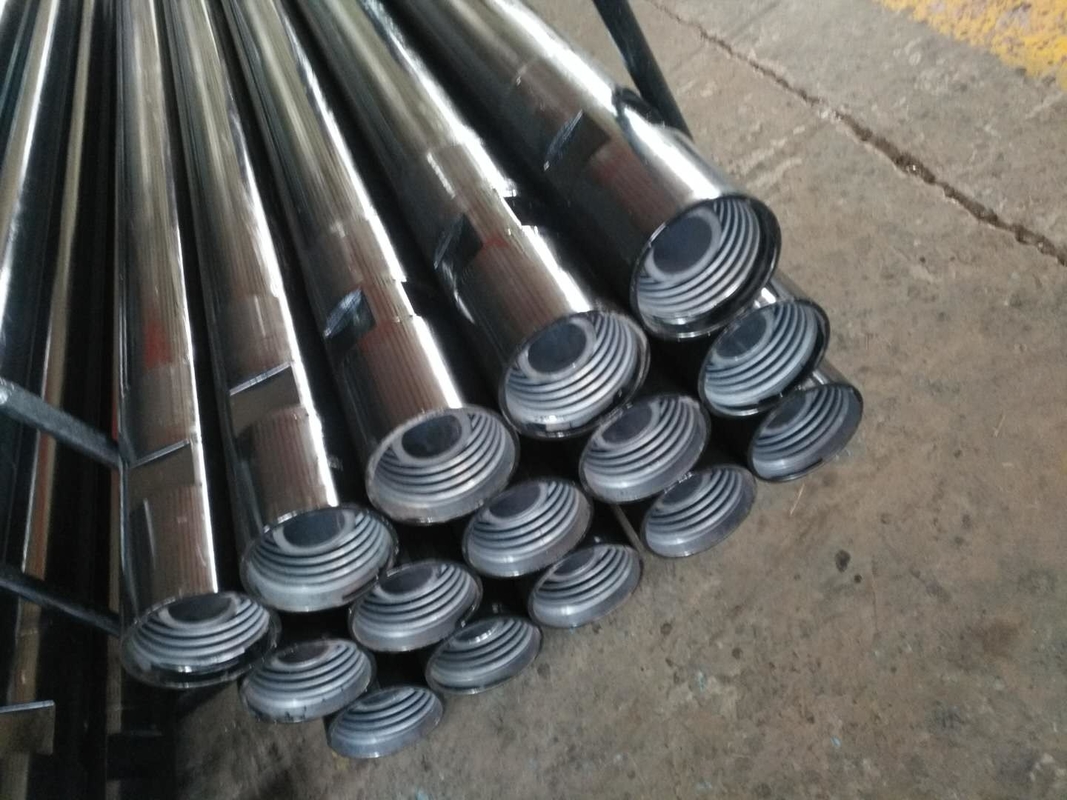

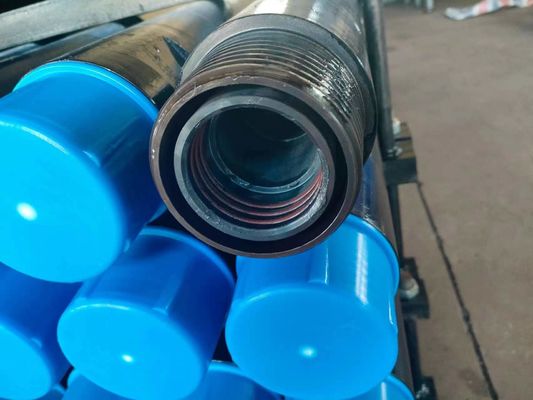

114mm R780 gread Steel Double Wall Drill Pipe 6000mm Length
The double wall drill pipe is a full hole drilling tool, and the hole wall clearance is small, so there is no space condition for collapse of broken rock blocks. The double wall drill pipe has a certain supporting effect on the hole wall. The continuity of the drilling process of drill pipe avoids the damage to the drilling caused by the pressure excitation and suction caused by frequent lifting and lowering of drilling tools.
Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
Drill pipe usage notes:
1. Before connecting the new drill pipe, apply thread oil on the threads
2. Trim and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to the special requirements of customers.
