Product Details:
|
| Name: | Double Wall Drill Pipe | Type: | Drill Pipe |
|---|---|---|---|
| Color: | Request | Advantage: | High Quality And Factory Price |
| Model: | WB76/32 | O.D. Of The Other Tube (mm): | 76 |
| Other Diameter Of Joint (mm): | 32 | Outer Dianeter Of Joint (mm): | 78 |
| Effective Length (m): | 6 | ||
| Highlight: | od 76mm double walled drill pipe,api double walled drill pipe,od 76mm double wall drill pipe |
||
Provide water well pipe for RC drilling Double wall rod reverse circulation reverse circulation (RC) drill pipe
Product Description:

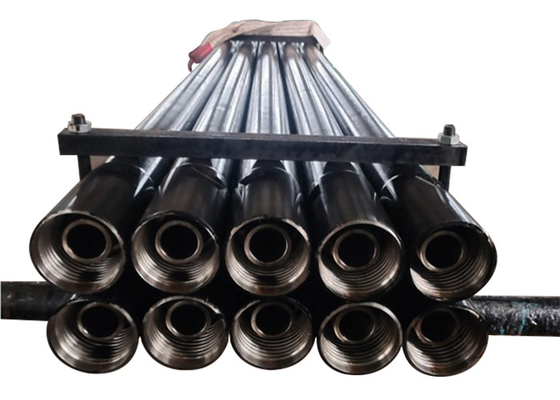

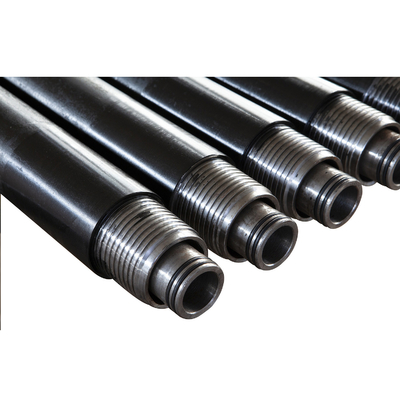

Od 76mm Double Walled Drill Pipe is used for RC wells R780 steel grade.
Double wall drill pipe is suitable for reverse circulation technology, and its scope of application is 1. It is suitable for water well drilling including complex formation 2. It is suitable for solid deposit drilling including complex formation; 3. Suitable for drilling shale gas wells; 4. Suitable for drilling in formations difficult to drill with normal circulation
Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
Drill pipe usage notes:
1. Before connecting the new drill pipe, apply thread oil on the threads
2. Trim and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to the special requirements of customers.
Our Services:
1. Drill pipe strictly according to API ISO9001 standard.
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities.
4. 24 hours online customer service,feel free contact us.
Our Services
1. Drill pipe strictly in accordance with ISO9001 standard
2. If you find a quality problem within one month of the package being returned.
3. All obligations and responsibilities are strictly performed in accordance with the contract
4. 24-hour online customer service, feel free to contact us.
