Product Details:
|
| Name: | Double Wall Drill Pipe | Type: | Drill Pipe |
|---|---|---|---|
| Color: | Request | Advantage: | High Quality And Factory Price |
| Model: | DB127/76 | O.D. Of The Other Tube (mm): | 127 |
| Other Diameter Of Joint (mm): | 76 | Outer Dianeter Of Joint (mm): | 127 |
| Type Of Threads: | 51/2FH | Effective Length (m): | 9.5 |
| Highlight: | fast backflow double wall drill pipe,127" od double wall drill pipe,fast backflow reverse circulation drill pipe |
||
Professional manufacturing of reverse circulation drill pipe/double wall drill pipe
Product Description

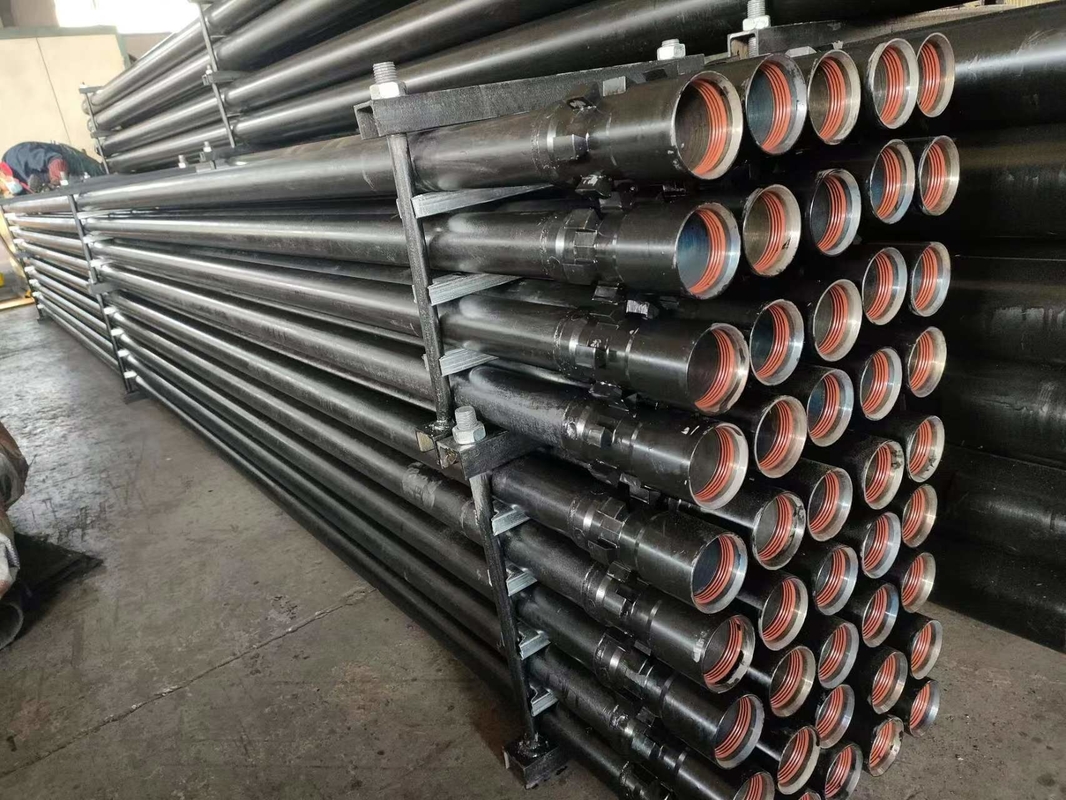

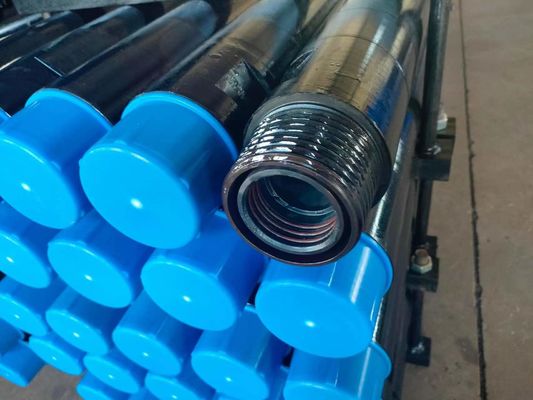

Double Wall Drill Pipe 127" Od 6m longth for water wells
Double-arm drill pipe is also called double-layer drill pipe. It is composed of inner and outer drill pipes (called inner pipe and outer pipe). The inner and outer pipes form an annulus, which is a channel for pumping the flushing medium to the bottom of the hole during hydraulic rock drilling and center sampling drilling. The center hole of the inner tube is used to discharge the flushing medium and is integrally fixed, and the threaded button of the outer tube is connected between each double-wall drill pipe to ensure the transmission of torque and pressure. However, plug connections are often used between the inner pipes, which generally only serve as a circulating flushing medium. Therefore, a sealing device should be installed at the insertion point.
Features of Drill Rod
1. Made of high-quality alloy steel.
2. All our drill pipes are heat treated.
3. Reasonable structure, reliable performance and high use efficiency.
4. Good concentricity, high precision and long service life.
Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
| WP50/20 | 50 | 20 | 50 | 1 , 1.5 | |
| WP73/35 | 73 | 35 | 73 | 1 , 1.5 | |
| WP89/40 | 89 | 40 | 89 | 1 , 1.5 |
Application
Suitable for horizontal drilling of drill pipe in various complex formations.
It is suitable for drilling with different sizes and weights.
Suitable for ground drilling machine jacking force, drag back force requirements to choose different specifications of drill pipe drilling.
Our Services:
1. Drill pipe strictly according to API ISO9001 standard.
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities.
4. 24 hours online customer service,feel free contact us.
Drill pipe usage notes
1. New drill pipe should be pasted thread oil before connection
1. Apply thread oil before connecting new drill pipe
2. The drill pipe shall be inspected regularly
3. Customized according to special requirements of customers
