Product Details:
|
| Name: | Double Wall Drill Pipe | Type: | Drill Pipe |
|---|---|---|---|
| Color: | Request | Advantage: | High Quality And Factory Price |
| Model: | WB114/52 | O.D. Of The Other Tube (mm): | 114 |
| Other Diameter Of Joint (mm): | 52 | Outer Dianeter Of Joint (mm): | 116 |
| Effective Length (m): | 6 | ||
| Highlight: | 114/52mm double wall drill pipe,full hole double wall drill pipe,114/52mm reverse circulation drill pipe |
||

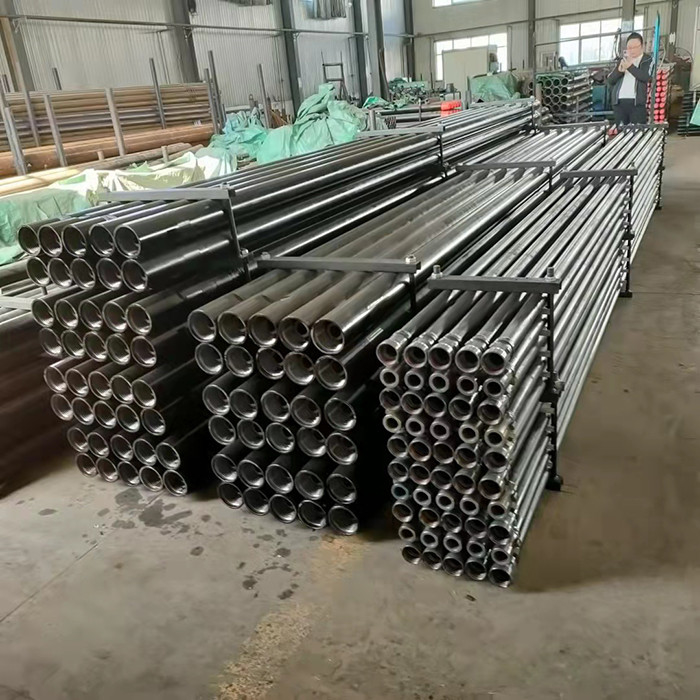

WK114/52 mm Full Hole Reverse Circulation Double Wall Drill Pipe
Product Description:
Double-arm drill pipe is also called double-layer drill pipe. It is composed of inner and outer drill pipes (called inner pipe and outer pipe). The inner and outer pipes form an annulus, which is a channel for pumping the flushing medium to the bottom of the hole during hydraulic rock drilling and center sampling drilling. The central hole of the inner tube is used to discharge the flushing medium and is integrally fixed, and the threaded button of the outer tube is connected between each double-wall drill pipe to ensure the transmission of torque and pressure. However, plug-in connections are often used between the inner pipes, which generally only serve as a circulating flushing medium. Therefore, a sealing device should be installed at the insertion point.
Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
Drill pipe usage notes:
1. Before connecting the new drill pipe, apply thread oil on the threads
2. Trim and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to the special requirements of customers.
Our Services:
1. Drill pipe strictly according to API ISO9001 standard.
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities.
4. 24 hours online customer service,feel free contact us.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-30 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need to pay the cost of products and freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
