Product Details:
|
| Product Name: | Pneumatic Pipe Ramming Hammer | Applicable Industries: | Energy & Mining |
|---|---|---|---|
| Type: | Ramming Hammer | Machine Type: | Drilling Equipment |
| Material: | Carbon Steel | Processing Type: | Forging / Casting |
| Use: | Well Drilling | Model: | BH260 |
| Host Outer Diameter (mm): | 260/265 | Host Length (mm): | 1390 |
| Host Weight (kg): | 320 | Air Consumption (m3/min): | 3-8 |
| Air Pressure (MPa): | 0.4-0.7 | Instant Maximum Impact (kN): | 2600 |
| Applicable Pipe Laying Diameter (mm): | 159-426 | Standard Pipe Laying Diameter (mm): | 273,325,426 |
| Highlight: | 2600kN Pneumatic Pipe Ramming Tools,159mm Pneumatic Pipe Ramming Tools,159mm Hammerhead Pipe Rammer |
||

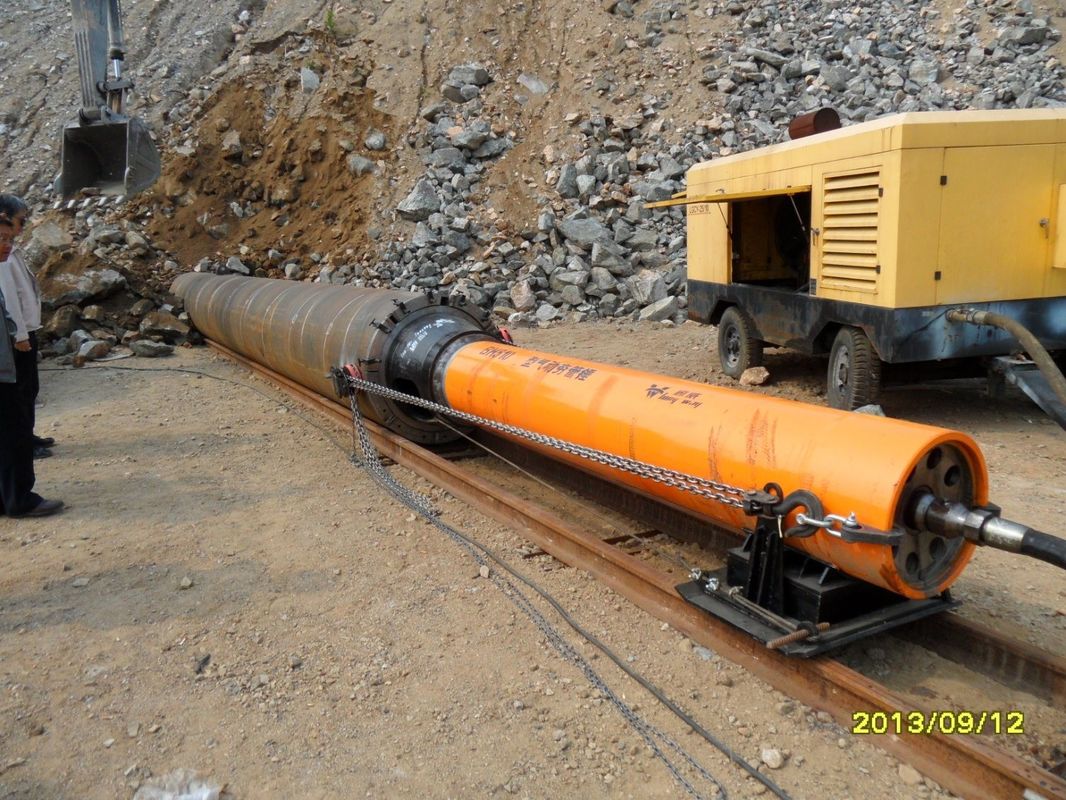

Drilling Equipment Machine Type Pneumatic Pipe Ramming Hammer
Product Description
The machine has the characteristic of high precision for pipe laying,larger diameter for the pipe to be laid, strong adaptability of formations, the equipment is simple, less investment, lower construction cost. Rammer is essentially a impactor with low frequency, large pneumatic hammer impact energy. It is a machine with the compressed air power to drive the cylinde in the hammer blow hammering block.
| Model | Host outer diameter (mm) | Host length (mm) | Host weight (kg) | Air consumption (m3/min) | Air pressure (MPa) | Instant maximum impact (kN) | Applicable pipe laying diameter (mm) | Standard pipe laying diameter (mm) |
| BH190S | 186/194 | 1320 | 160 | 2-6 | 0.4-0.7 | 1500 | 89-273 | 108,159,219 |
| BH260 | 260/265 | 1390 | 320 | 3-8 | 0.4-0.7 | 2600 | 159-426 | 273,325,426 |
| BH300 | 290/300 | 2100 | 750 | 4-11 | 0.4-0.7 | 4500 | 219-630 | 325,426,529 |
| BH350 | 350/365 | 2400 | 1200 | 6~17 | 0.4-0.7 | 6000 | 273-Φ820 | 426,529,630 |
| BH420 | 415/425 | 2800 | 1950 | 9-21 | 0.4-0.7 | 8000 | 325-1200 | 426,529,630 |
| BH510 | 510/520 | 3200 | 3400 | 12-28 | 0.4-0.7 | 12000 | 426~1500 | 630,720,820 |
| BH610 | 610/620 | 3400 | 5100 | 20-40 | 0.4-0.7 | 20000 | 529-1800 | 820,920,1020 |
| BH650 | 620/650 | 3600 | 5500 | 20-50 | 0.4-0.9 | 25000 | 529~2200 | 820,920,1020 |
| BH700 | 700/710 | 3680 | 7100 | 28-60 | 0.4-0.7 | 28000 | 630-2500 | 1020,1120,1220 |
Advantage
Anvil after clamping
The back anvil is the mark of BAIWEI perforation tool design. The clamping load provided by this function is 200% higher than that of competing products, making it the safest component on the market.
Forward wear ring
The one-piece striker contains a set of wear rings that eliminate metal-to-metal contact, thereby providing a sustained level of performance.
Push chuck
The BAIWEI tamper tool can be set into a conical locking chuck, thereby reducing the time for setting up and disassembly. The chuck can be fully engaged with the steel housing by 6 inches (152 mm), thereby firmly locking the tip of the knife on the housing, eliminating the need for a support frame, and reducing the opening of the sleeve, thereby saving working time.
Collet jack
For larger size collets, BAIWEI provides collet lifters, which can easily move, load and unload heavy collets on site.
Accessories
BAIWEI provides a wide range of ramming accessories, such as lubrication systems, seal kits, balanced collet lifters, pipe pigs and plunger sleeves. All these are designed to make your next job more efficient.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
