Product Details:
|
| Name: | Double Wall Drill Pipe | Type: | Drill Pipe |
|---|---|---|---|
| Color: | Request | Advantage: | High Quality And Factory Price |
| Model: | WB140/88 | O.D. Of The Other Tube (mm): | 139.7 |
| Other Diameter Of Joint (mm): | 88 | Outer Dianeter Of Joint (mm): | 184 |
| Type Of Threads: | 51/2FH | Effective Length (m): | 6, 9.5 |
| Highlight: | 139.7mm O.D. Horizontal Directional Drilling Steel Pipe,9.5m Length Horizontal Directional Drilling Steel Pipe,139.7mm O.D. double walled drill pipe |
||
Reverse Circulation Drill Pipe / RC Double Wall Drill Pipe
Product Description
In order to realize the reverse circulation drilling process of the through-hole DTH hammer, the supporting drilling tool system mainly includes a double-wall drill pipe. In addition to the through-hole DTH hammer used to achieve the impact effect, a reverse circulation drill bit, a dual-channel faucet, and other auxiliary tools are also required. Double-arm drill pipe is one of its core components
1. Steel grade: E75R780G105 S135
2. Specification: 42-140mm
3. Thread: For Vermeer, Ditch witch, Drillto
We can manufacture all kinds of drill rod as per customer's requirments.

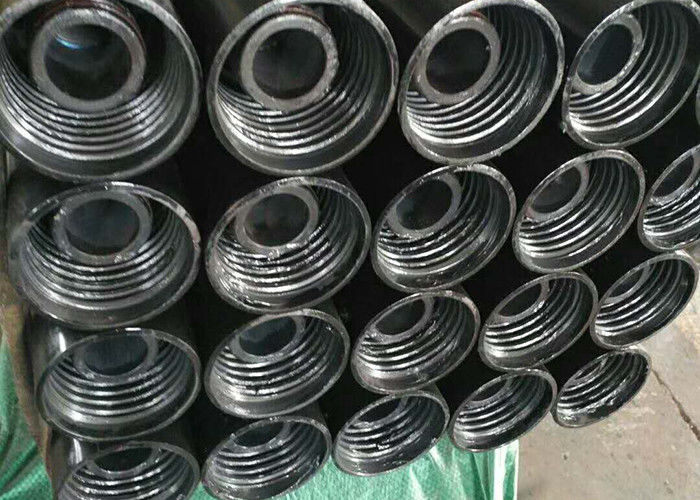

Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
| WP50/20 | 50 | 20 | 50 | 1 , 1.5 | |
| WP73/35 | 73 | 35 | 73 | 1 , 1.5 | |
| WP89/40 | 89 | 40 | 89 | 1 , 1.5 |
Two force regions
The thread of the non-digging drill pipe produced by the company has two Force areas. This structure is designed to reduce the resistance faced by drill A during the construction process. These pipes are designed to withstand high torque while retaining a large inner diameter for excellent drilling fluid flow, so that the threads will not deform.
Optimal design
Drill rods through the dispersion of equal strength And stress optimal design, can give full play to the Potential of drill material.
Our Services:
1. Drill pipe strictly according to API ISO9001 standard.
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities.
4. 24 hours online customer service,feel free contact us.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-30 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need to pay the cost of products and freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
