Product Details:
|
| Name: | Double Wall Drill Pipe | Type: | Drill Pipe |
|---|---|---|---|
| Color: | Request | Advantage: | High Quality And Factory Price |
| Model: | WK114/52 | O.D. Of The Other Tube (mm): | 114.3 |
| Other Diameter Of Joint (mm): | 52 | Outer Dianeter Of Joint (mm): | 116 |
| Type Of Threads: | 4 1/2"Remet | Effective Length (m): | 3, 6 |
| Highlight: | G105 Steel Double Wall Drill Pipe,4 1/2inch Double Wall Drill Pipe,3mm length RC Drill Pipe |
||
Reverse Circulation Drill Rod / Double Wall RC Pipe For Reverse Cireulation Drilling
Product Description
1. Steel grade: E75 R780 G105 S135
2. Specification: 42-140mm
3. Thread: For Vermeer, Ditch witch, Drillto
We can manufacture all kinds of drill rod as per customer's requirments.
Features of Drill Rod
1. Made of high quality alloy steel.
2. All our drill rods are heat-treated.
3. Reasonable structure, reliable performance and high using efficiency.
4. Good concentricity, high precision and long service life.

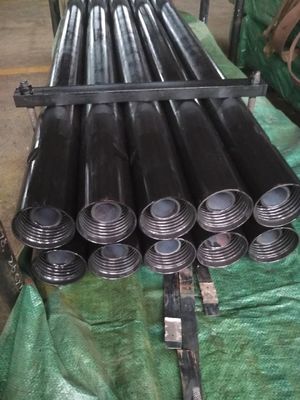

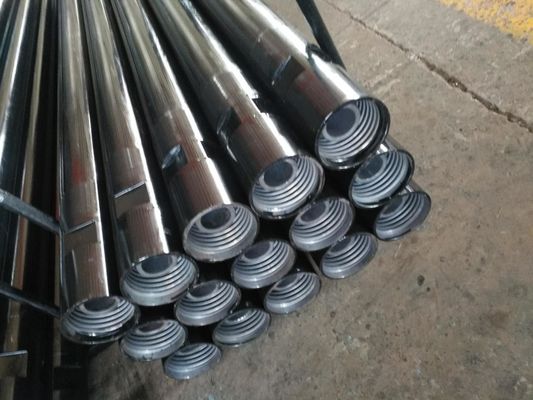

Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
| WP50/20 | 50 | 20 | 50 | 1 , 1.5 | |
| WP73/35 | 73 | 35 | 73 | 1 , 1.5 | |
| WP89/40 | 89 | 40 | 89 | 1 , 1.5 |
Drill pipe usage notes
1. New drill pipe should be pasted thread oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to costumer special requirement.
