BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length

BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length
BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length
BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length

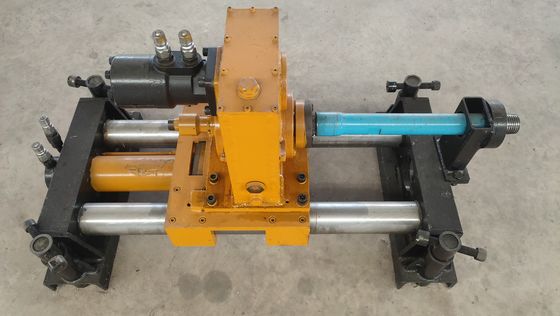

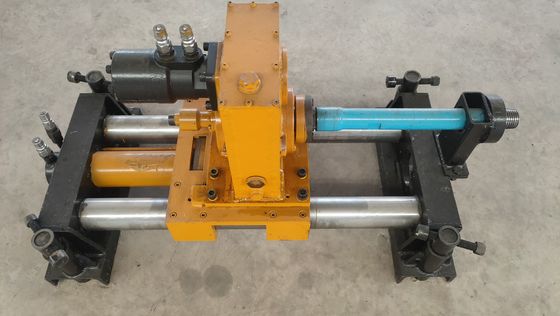

Large Image :  BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length

Product Details:
Place of Origin: China
Brand Name: Longway
Certification: ISO9001
Model Number: BW3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: According to clients' needs
Delivery Time: 20-30 working days, which will be adjusted according to different products and inventory
Payment Terms: T/T
Contact Now

BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length

Description
Highlight:

900X470X480 Dimension Micro Horizontal Drilling Rig

,

42mm Drill Rod Diameter Small Drilling Rig

,

350mm Drill Rod Length BW3 Micro Horizontal Drilling Rig

BW3 Micro Horizontal Drilling Rig
The BW3 Micro Horizontal Drilling Rig is designed for operation in confined spaces such as inspection wells. This compact drilling solution is ideal for pipeline plugging, repairs, and small pipeline directional crossing applications.
Key Features
  • Compact design for operation in narrow spaces
  • Equipped with swivel for versatile operation
  • Compatible with both mud and compressed air as washing fluid
  • Can connect to micro guide bits for horizontal directional drilling
  • Compatible with specially designed micro DTH hammer for efficient drilling in cement and rock
Technical Specifications
Main Engine Dimensions (mm) 900 * 470 * 480
Drill Rod Diameter (mm) 42
Drill Rod Length (mm) 350
Main Machine Weight (kg) 170
Hydraulic Station Weight (empty, kg) 200
Maximum Torque (Nm) 1100
Rotation Rate (r/min) 36.5
Feed Force (kN) 31
Pull Force (kN) 15
Feed Speed (m/min) 0.06-0.3
BW3 Micro Horizontal Drilling Rig with 900X470X480 Dimension 42mm Drill Rod Diameter and 350mm Drill Rod Length 0
Frequently Asked Questions
What is your delivery time?
Our standard production time is approximately 20 days. For items in stock, we can ship within 3 business days.
How do you ensure product quality?
We conduct rigorous quality inspections and performance tests on every drill rod prior to shipment to guarantee reliability and durability.
Do you accept sample orders?
Yes, we welcome sample orders as an opportunity for you to evaluate our product quality before committing to larger quantities.
Are your drill pipes heat-treated?
Yes, all our drill pipes and casings undergo professional heat treatment to enhance their structural strength and operational performance.
Do your drill pipes have anti-rust protection?
Yes, each drill pipe and casing receives anti-rust paint or anti-corrosion oil coating before shipping. Galvanized options are available upon request.
