Product Details:
|
| Project: | KX40 | Load (KN): | *** |
|---|---|---|---|
| Full Thrust (KN): | 220 | Maximum Pull-back Speed (m/min): | 1.6 |
| Power (KW): | 4.5 | Size Of The Host (length Width And Height) (mm): | 413*452*311 |
| Hydraulic Station Size (length Width And Height) (mm): | 800*550*500 | Hydraulic Station Weight (kg): | 200 |
| The Host Weight (kg): | 120 | Require Well Dimensions (length) (mm): | 800 |
| Fit Diameter Of Manhole (mm): | 460 | Rod Specifications (mm): | Φ60*500 |
| Highlight: | ISO9001 Replacement Old Pipeline machine,ISO9001 pipeline replacement system,Pipeline Machine BX40 |
||
Replace The Underground Pipeline With New Pipeline System

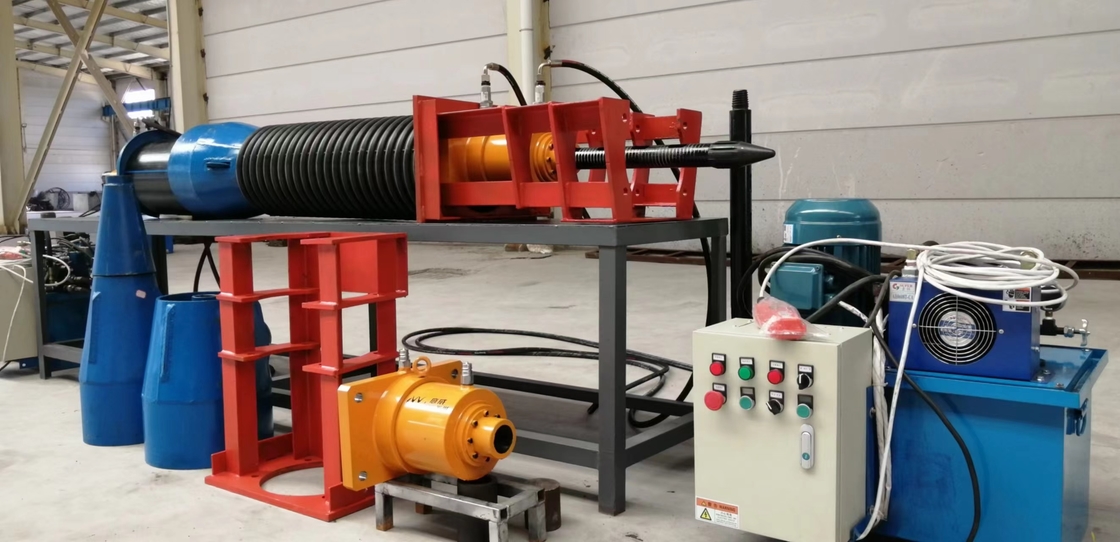

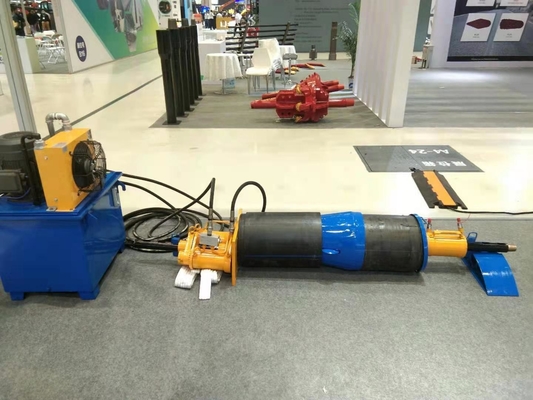

ISO9001 Certified Underground Old Pipeline Replacement machine BX40
Description
The pipeline replacement system independently developed by our company is mainly used for the replacement of urban underground pipelines. After some old pipelines are damaged, they can be replaced with new ones through our equipment. The old pipes can be made of cement pipes, steel pipes, PE pipes, etc. Generally, the same pipe diameter replacement or reduced diameter replacement is supported
| Project | Unit | BL25 | BL40 | BL90 | KX80 |
| Load | KN | 250 | 400 | 900 | 800 |
| Full thrust | KN | 140 | 220 | 480 | *** |
| Maximum pull-back speed | m/min | 2.6 | 2.9 | 2 | 1.5 |
| Minimum pull-back speed | m/min | 1.4 | 1.6 | 1.1 | 0.8 |
| Advance rate | m/min | 2.6 | 2.9 | 2 | *** |
| Power | KW | 4 | 7.5 | 11 | 7.5 |
| Size of the host (length width and height) | mm*mm*mm | 680*460*370 | 770*575*406 | 1140*855*592 | 600*400*400 |
| Hydraulic station size (length width and height) | mm*mm*mm | 800*550*500 | 1200*1000*900 | 1350*1100*1000 | 1200*1000*900 |
| The host weight | kg | 145 | 260 | 800 | 280 |
| Hydraulic station weight | kg | 200 | 400 | 600 | 400 |
| Fit diameter of manhole | mm | 520 | 630 | 1000 | 420 |
| Require well dimensions (length) | mm | 1000 | 1200 | 2300 | 420 |
| Rod specifications | mm*mm | Φ42*600 | Φ60*600 | Φ68*1000 | Φ68*600 |
| Project | Unit | KX80 | KX50 | BX40 |
| Load | KN | 800 | 50 | 40 |
| Full thrust | KN | |||
| Maximum pull-back speed | m/min | 1.5 | 1.5 | 1.8 |
| Minimum pull-back speed | m/min | 0.8 | 0.8 | 0.9 |
| Advance rate | m/min | 1.8 | ||
| Power | KW | 7.5 | 4 | 4 |
| Size of the host (length width and height) | mm*mm*mm | 600*400*400 | 480*400*400 | 413*452*311 |
| Hydraulic station size (length width and height) | mm*mm*mm | 1200*1000*900 | 800*550*500 | 800*550*500 |
| The host weight | kg | 280 | 120 | 120 |
| Hydraulic station weight | kg | 400 | 140 | 200 |
| Fit diameter of manhole | mm | 420 | 420 | 460 |
| Require well dimensions (length) | mm | 1000 | 800 | 800 |
| Rod specifications | mm*mm | Φ68*600 | Φ60*500 | Φ6*500 |
Our Services
1. Drill pipe strictly according to API ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
