Product Details:
|
| Place Of Origin: | HeBei, China | Type: | Drill Pipe |
|---|---|---|---|
| Machine Type: | Drilling Equipment | Certification: | API |
| Material: | E75, R780, X95, G105, S135 Etc | Processing Type: | Forging / Rolling Pipe |
| Application: | Water Well Drilling | Use: | Well Drilling |
| Advantage: | High Performance | Color: | Black Or Customized |
| Usage: | Well Drilling | Drill Pipe Diameter (mm): | 89 |
| Drill Pipe Length (mm): | 1000-9144 | Wall Thickness (mm): | 9.35mm |
| Type Of Threads: | API 2 7/8"REG | Spanner Slot (mm): | Square 70/64 |
| Highlight: | 3 1/2 Drill Pip R780,G105 drill pipe api standard,9.35mm drill pipe api standard |
||

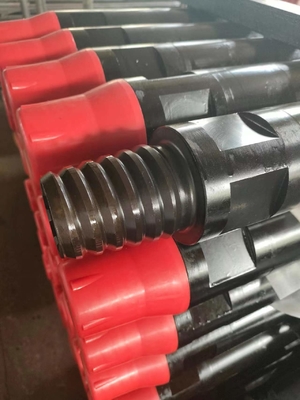

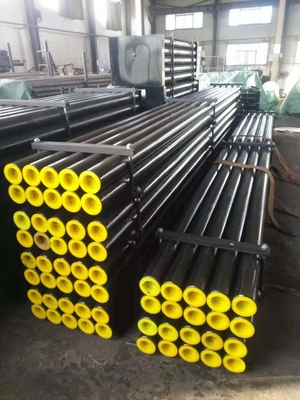

3 1/2 Drill Rod Water Well Drill Pipe R780 / G105 high Steel Grade
Extension Water Rod Drill Pipe Water Well Drill Pipe
Product Description
Steel and Aluminum drill pipe materials.
Pipe sizes from 2 3/8 to 4 1/2 outside diameter.
Wide selection of tool joint connections.
Flush outside diameter and 180 shouldered tool joints.
Standard wrench flats on box end tool joints.
Constant wall pipe configuration.
Shoulder to shoulder lengths from 10 to 45 feet in 5 foot increments.
| Place of Origin | HeBei, China |
| Type | Drill Pipe |
| Machine Type | Drilling Equipment |
| Certification | API |
| Material | E75, R780, X95, G105, S135 etc |
| Processing Type | Forging / Rolling pipe |
| Use | Well Drilling |
| Diameter | 50, 60, 73, 89, 114, 127 |
| Application | Water well drilling |
| Advantage | High Performance |
| Usage | Well Drilling |
| Color | Black or customized |
| Drill pipe diameter (mm) | Drill pipe length (mm) | Wall Thickness (mm) | Type of threads | Spanner slot (mm) | |
| 3 1/2 | 89 | 1000-9144 | 6 | API 2 3/8"IF | square 70/64 |
| 4 | 102 | 1000-9144 | 8.38 | API 2 7/8"IF | square 76/89 |
| 4 1/2 | 114 | 1500-9144 | 8.38 | API 3 1/2"REG/IF | 89/95 |
| 5 | 127 | 1500-9144 | 9.19 | API 3 1/2"REG/IF | 89 |
| 5 1/2 | 140 | 1500-9144 | 10.00-25.4 | API 4 1/2'REG/IF or 4'FH | 114 |
| 6 1/4 | 168 | 3000-9144 | 10.00-25.4 | API 4 1/2'REG/IF or 4'FH | 127 |
| 7 | 178 | 3000-9144 | 12.7-25.4 | 5 1/2/FH/REG | 127 |
| 7 5/8 | 194 | 3000-9144 | 12.7-25.4 | 6 5/8/REG | 152 |
Main features
The drill pipe is a steel pipe with a thread at the tail, which is used to connect the surface equipment of the drilling rig and the drilling and grinding equipment or bottom hole device located at the bottom end of the drilling well. The purpose of the drill pipe is to transport the drilling mud to the drill bit, and together with the drill bit to raise, lower or rotate the bottom hole device. The drill pipe must be able to withstand huge internal and external pressures, twists, bends and vibrations. During the extraction and refining of oil and gas, the drill pipe can be used multiple times.
Used in
Our water well drill pipes can be used to projects of water well drilling, geothermal well drilling, pipe-shed support drilling and so on. They are widely used by our domestic and abroad customers. We also suppply down-the-hole drill pipes, oil drill pipes and non-dig drill pipes, drilling equipments and some other drilling tools.
Our Services
1. Drill pipe strictly in accordance with ISO9001 standard
2. If you find a quality problem within one month of the package being returned.
3. All obligations and responsibilities are strictly performed in accordance with the contract
4. 24-hour online customer service, feel free to contact us.
