Product Details:
|
| Project: | KX50 | Load (KN): | 500 |
|---|---|---|---|
| Full Thrust (KN): | - | Maximum Pull-back Speed (m/min): | 1.5 |
| Minimum Pull-back Speed (m/min): | 0.8 | Advance Rate (m/min): | - |
| Power (KW): | 4 | Size Of The Host (length Width And Height) (mm): | 480*400*400 |
| Hydraulic Station Size (length Width And Height) (mm): | 800*550*500 | The Host Weight (kg): | 120 |
| Hydraulic Station Weight (kg): | 140 | Fit Diameter Of Manhole (mm): | 420 |
| Require Well Dimensions (length) (mm): | 800 | Rod Specifications (mm): | Φ60*500 |
| Highlight: | Trenchless Pipe Bursting Equipment 50T,pipe bursting machine 50T,Pipe Bursting Equipment high performance |
||

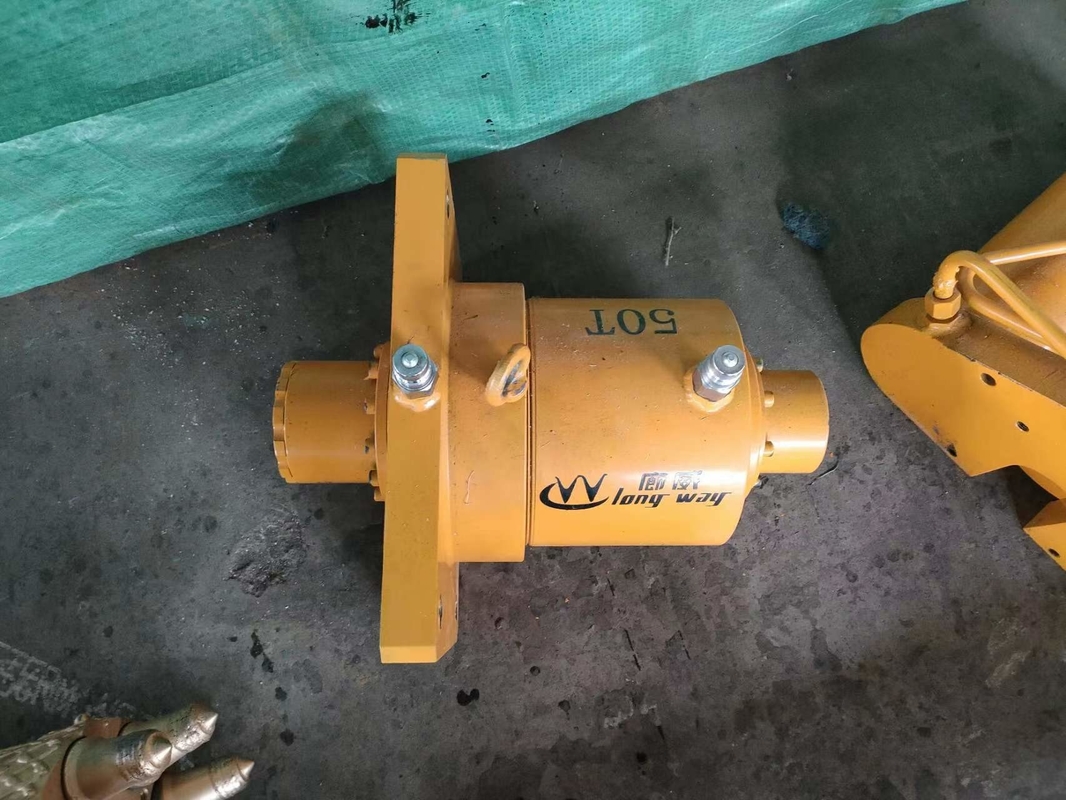

KX50 Pipe Bursting Equipment yellow 50T
Description

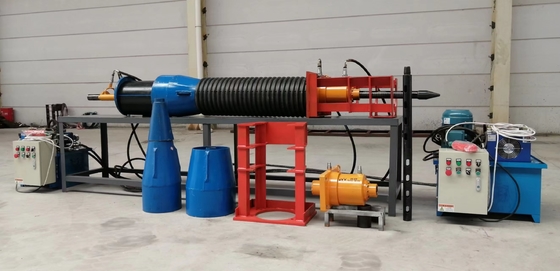

Pipeline Replacement System consists of Pipe cracking Machine, puling rod, cutter, and expanded head which independently developed by LangFang Baiwei Drill Co., Ltd, is suitable for casing pipe, castiron pipe, concrete and steel pipe.
The equipment is adopted in the construction of remarking rban old pipe owing to its features of saving pipeline occup iedspace, simple construction low cost and high efficiency.
| Project | Unit | BL25 | BL40 | BL90 | BL180 |
| Load | KN | 250 | 400 | 900 | 1800 |
| Full thrust | KN | 140 | 220 | 480 | 960 |
| Maximum pull-back speed | m/min | 2.6 | 2.9 | 2 | 2 |
| Minimum pull-back speed | m/min | 1.4 | 1.6 | 1.1 | 1.1 |
| Advance rate | m/min | 2.6 | 2.9 | 2 | 2 |
| Power | KW | 4 | 7.5 | 11 | 18 |
| Size of the host (length width and height) | mm*mm*mm | 680*460*370 | 770*575*406 | 1140*855*592 | 1340*1100*760 |
| Hydraulic station size (length width and height) | mm*mm*mm | 800*550*500 | 1200*1000*900 | 1350*1100*1000 | 1500*1300*1200 |
| The host weight | kg | 145 | 260 | 800 | 1700 |
| Hydraulic station weight | kg | 200 | 400 | 600 | 1100 |
| Fit diameter of manhole | mm | 520 | 630 | 1000 | 1200 |
| Require well dimensions (length) | mm | 1000 | 1200 | 2300 | 2600 |
| Rod specifications | mm*mm | Φ42*600 | Φ60*600 | Φ68*1000 | Φ89*1000 |
| Project | Unit | KX80 | KX50 | BX40 |
| Load | KN | 800 | 50 | 40 |
| Full thrust | KN | |||
| Maximum pull-back speed | m/min | 1.5 | 1.5 | 1.8 |
| Minimum pull-back speed | m/min | 0.8 | 0.8 | 0.9 |
| Advance rate | m/min | 1.8 | ||
| Power | KW | 7.5 | 4 | 4 |
| Size of the host (length width and height) | mm*mm*mm | 600*400*400 | 480*400*400 | 413*452*311 |
| Hydraulic station size (length width and height) | mm*mm*mm | 1200*1000*900 | 800*550*500 | 800*550*500 |
| The host weight | kg | 280 | 120 | 120 |
| Hydraulic station weight | kg | 400 | 140 | 200 |
| Fit diameter of manhole | mm | 420 | 420 | 460 |
| Require well dimensions (length) | mm | 1000 | 800 | 800 |
| Rod specifications | mm*mm | Φ68*600 | Φ60*500 | Φ6*500 |
Our Services
1. Drill pipe strictly according to API ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
Quality Control
Quality guarantee is not only responsible for customers, but also the assurance of enterprise's steady development. The necessary test equipment and the effective & perfect production process control is the assurance of product quality. Taking the spirit of "To win the market with innovation, to serve the customers with friendship, to build the brand with quality, to develop the enterprise with sincerity", we utilize the advanced testing methods to make each product meticulously.
The raw materials selected by our company are all the alloy structure steels for geographical usage produced by Baogang Steel. After laboratory tests, after laboratory tests, both ends of a pipe are upsetted and proceeded to overall heat treatment, then friction welded. Before finished drill pipes are plated and packaged, a series of tests have to be implemented including hardness, metallurgical structure, physical performances, etc.
