Product Details:
|
| Type: | Watet Well Drill Pipes | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Material: | High Manganese Steel | Processing Type: | Forging |
| Use: | Well Drilling | Application: | Well Drilling,DTH Drilling, Coal Drilling, Quarrying |
| Pressure: | High Pressure | Diameter: | 50mm To 159mm |
| Length: | 15FT/20FT/25FT | Color: | Request |
| Advantage: | High Performance | Usage: | Well Drilling |
| Highlight: | 20FT Water Well Drill Pipe,High Strength Water Well Drill Pipe,Forging Processing well drilling pipe |
||
High Strength Outer Flat Drill Pipe Round Drill Pipe For Mining Drilling Rig
20FT high-strength drill pipe, 4-1/2mm water well drill pipe
Product Description

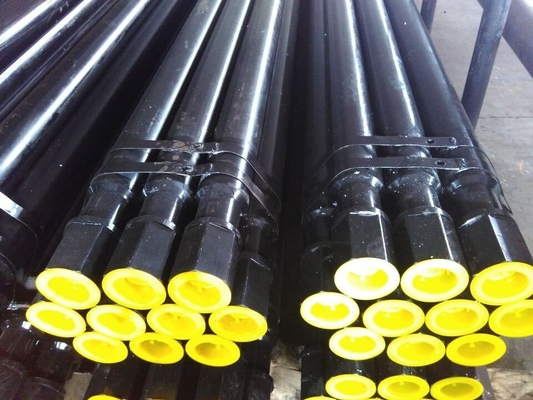

The flat drill pipe is mainly suitable for water hammer rotary drilling (liquid and gas). It has the characteristics of high rigidity, good air tightness, flat external structure, low rotating torque and low resistance. The main specifications include ￠ 50 ￠ 60 ￠ 73 ￠ 89 ￠ 114, which can also be customized as required.
| OD A |
Wall B |
Length L |
Weight lbs |
ID Pin C |
Across Flat D |
Flat Length E |
Dist From Shoulder F |
Flat Length G |
Across Flat H |
Connection |
| 3.5" | .315" | 20' | 245 | 1.75" | 2.75" | 12.5" | 3.25" | 2.25" | 3.25" | 2 3/8IF |
| 4.5" | .337" | 20' | 345 | 1.75" | 3" | 12.5" | 3.25" | 2.375" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 20' | 345 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 25' | 430 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 25' | 430 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 30' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 25' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 30' | 615 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .750" | 25' | 805 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 25' | 695 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 30' | 775 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 30' | 1100 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 25' | 930 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 25' | 1045 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 30' | 1240 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
Drill pipe usage notes
1. New drill pipe should be oiled before connecting
2. Trim and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to the special requirements of customers
The drilling tool of rotary well drilling rig includes drill pipe and drill bit. The nominal diameters of commonly used drill pipes are 60, 73, 89 and 114 mm. The drill bits are divided into two types: full drill bit and annular drill bit. Large and small pot cones use their pot cone drilling tools to rotate and cut the soil layer.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
