Product Details:
|
| Type: | Drill Pipes | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Material: | High Manganese Steel | Processing Type: | Forging |
| Use: | Well Drilling | Application: | Well Drilling,DTH Drilling, Coal Drilling, Quarrying |
| Pressure: | High Pressure | Diameter: | 42-140mm |
| Length: | 15FT/20FT/25FT/30FT | Color: | Request |
| Advantage: | High Performance | Usage: | Well Drilling |
| Highlight: | Water Well Drill Pipe 20FT,140mm well drilling pipe,140mm Water Well Drill Pipe |
||

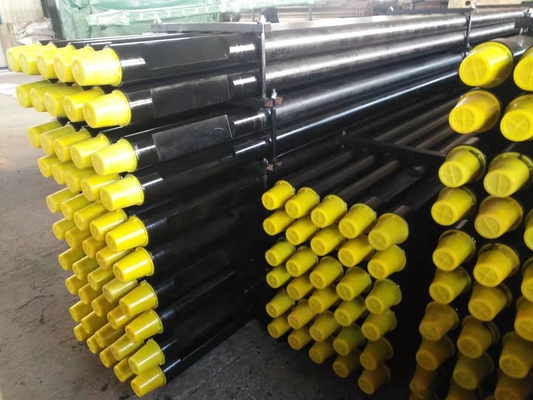

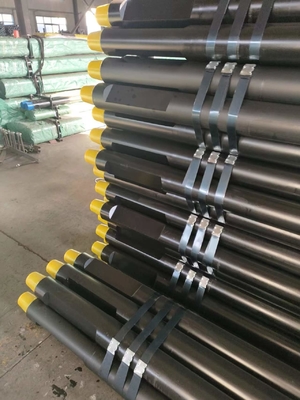

High Manganese Steel API Oilwell Drill Pipe For Well Drilling
Product Description
1. The rod body is quenched and tempered, and its resilience and yield strength are strengthened

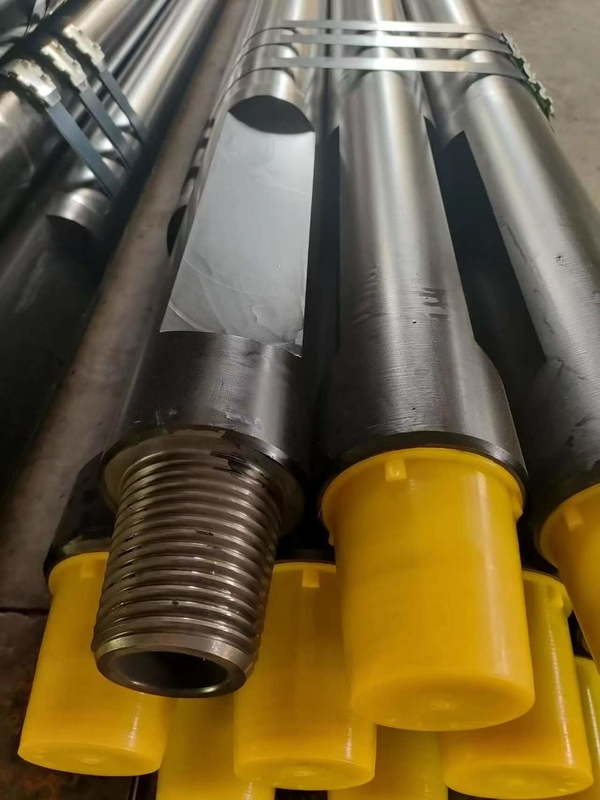

2. The joint shall be quenched and tempered with 42CrMo and the surface shall be nitrided as far as possible
3. Friction welding process between joint and rod body to ensure the strength and coaxiality of joint and rod body
| OD A |
Wall B |
Length L |
Weight lbs |
ID Pin C |
Across Flat D |
Flat Length E |
Dist From Shoulder F |
Flat Length G |
Across Flat H |
Connection |
| 3.5" | .315" | 20' | 245 | 1.75" | 2.75" | 12.5" | 3.25" | 2.25" | 3.25" | 2 3/8IF |
| 4.5" | .337" | 20' | 345 | 1.75" | 3" | 12.5" | 3.25" | 2.375" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 20' | 345 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 25' | 430 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 25' | 430 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 30' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 25' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 30' | 615 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .750" | 25' | 805 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 25' | 695 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 30' | 775 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 30' | 1100 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 25' | 930 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 25' | 1045 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 30' | 1240 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
Drill pipe usage notes
1. New drill pipe should be pasted oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to clients’ special requirements
Drill pipe usage notes
1. New drill pipe should be pasted oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to clients’ special requirements
