Product Details:
|
| Type: | Water Well Drill Pipes | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Material: | High Manganese Steel | Processing Type: | Forging |
| Use: | Well Drilling | Application: | Well Drilling, Drilling, Coal Drilling, Quarrying |
| Pressure: | High Pressure | Diameter: | 50mm To 159mm |
| Length: | 15FT/20FT/25FT | Color: | Request |
| Advantage: | High Performance | Usage: | Well Drilling |
| High Light: | 159mm welding on drill pipe,430lbs welding on drill pipe,159mm drill pipe welding rod |
||

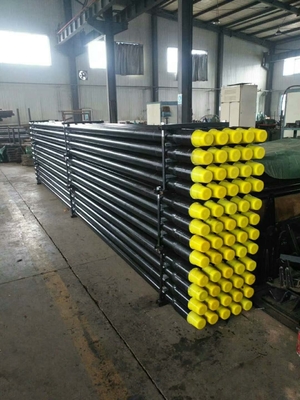

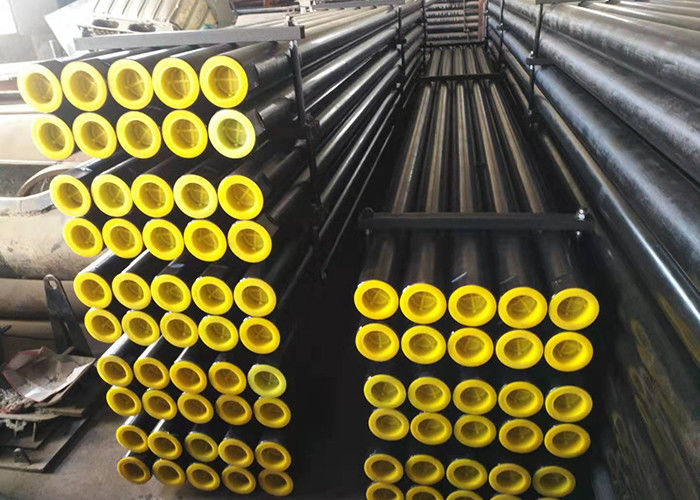

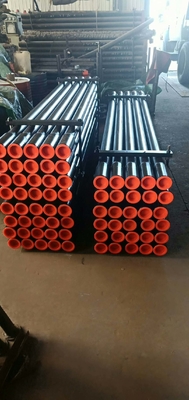

High Quality Steel DTH Drill Pipe For Drilling Oilwell
Product Description
According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm, 159mm.
| OD A |
Wall B |
Length L |
Weight lbs |
ID Pin C |
Across Flat D |
Flat Length E |
Dist From Shoulder F |
Flat Length G |
Across Flat H |
Connection |
| 3.5" | .315" | 20' | 245 | 1.75" | 2.75" | 12.5" | 3.25" | 2.25" | 3.25" | 2 3/8IF |
| 4.5" | .337" | 20' | 345 | 1.75" | 3" | 12.5" | 3.25" | 2.375" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 20' | 345 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 25' | 430 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 25' | 430 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 30' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 25' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 30' | 615 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .750" | 25' | 805 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 25' | 695 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 30' | 775 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 30' | 1100 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 25' | 930 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 25' | 1045 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 30' | 1240 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
Drill pipe usage notes
1. New drill pipe should be pasted oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to clients’ special requirements
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
