Product Details:
|
| Product Name: | HDD Tools | Applicable Industries: | Construction Works , Energy & Mining, Infrastructure Construction |
|---|---|---|---|
| Type: | Reamers | Machine Type: | Drilling Tool |
| Material: | Steel | Processing Type: | Casting |
| Outside Diameter: | 200mm-1000mm | Application: | Horizontal Directional Drilling |
| Usage: | For Horizontal Directional Drilling Rig | OEM Service: | Accept |
| High Light: | 1000mm Hdd Rock Bits,S135 Hdd Rock Bits |
||

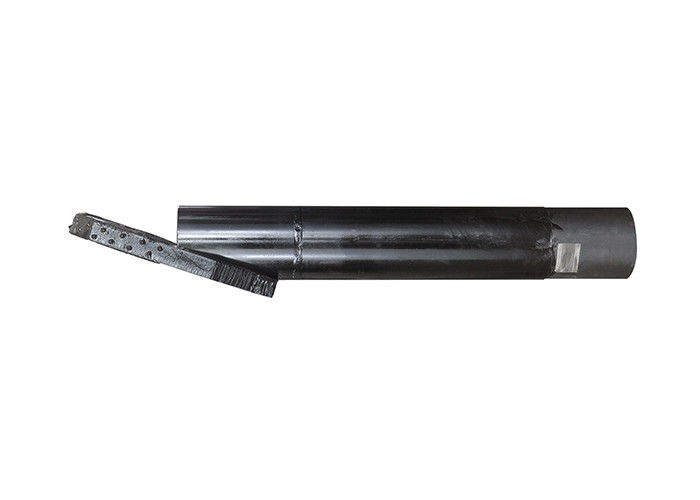

Horizontal Directional Pilot Bit Sonde Housing Guide Drill
Product Description
Super alloy steel can be durable under harsh drilling conditions
Convenient side loading
Accept OEM compatible bits
Replaceable nose bridge
Carburized steel
1/8 inch larger than the housing to minimize wear
Various jet sizes
| Type | Type of threads (K) | External diameter (B) | Carbon storehouse size (L) | Weight (KG) |
| 73 Drill Head Series | 50 Drill pipe threads | Φ73 | 380 | 17 |
| 83 Drill Head Series | 60 Drill pipe threads | Φ83 | 380/480 | 23/27 |
| 83 Drill Head Series | 73 Drill pipe threads | Φ83 | 380/480 | 25/29 |
| 88 Drill Head Series | 76 Drill pipe threads | Φ88 | 380/480 | 26/30 |
| 93 Drill Head Series | 83 Drill pipe threads | Φ93 | 380/480 | 32/36 |
| 108 Drill Head Series | 89 Drill pipe threads | Φ108 | 380/480 | 44/48 |
| 127 Drill Head Series | 102 Drill pipe threads | Φ127 | 380/480 | 73/78 |
| 168 Long Drill Head Series | 127 Drill pipe threads | Φ168 | 480 | 150 |
| 194 Long Drill Head Series | 140 Drill pipe threads | Φ194 | 480 | 270 |
Features
Stratum: suitable for sand and medium to very hard soil
Structure: steel shell, welded
Connect with drill pipe: Octagonal connection is directly connected with drill pipe
Laying pipe connection: rotatable or non-rotating
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
