Product Details:
|
| Product Name: | HDD Tools | Applicable Industries: | Construction Works , Energy & Mining, Infrastructure Construction |
|---|---|---|---|
| Type: | Reamers | Machine Type: | Drilling Tool |
| Material: | Steel | Processing Type: | Casting |
| Outside Diameter: | 200mm-1000mm | Application: | Horizontal Directional Drilling |
| Usage: | For Horizontal Directional Drilling Rig | OEM Service: | Accept |
| High Light: | 380L Drill Head,1000mm Drill Head |
||

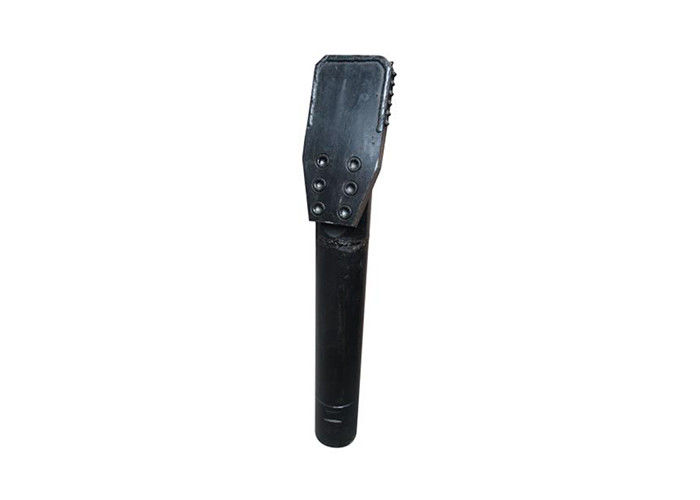

Reamers Type Drill Head Application Horizontal Directional Drilling
Product Description
Signal rods can be loaded and unloaded on the side or rear.
According to the construction needs of different customers, multi-wiring design is adopted.
The integral drill bit adopts wear-resistant alloy precision casting forming technology.
Drill claw adopts wear-resistant high alloy and wear-resistant welding process.
The signal transmission slot is closed with non-metal, and the signal penetration is strong.
The signal transmission slot is evenly distributed to ensure that the guide drill does not interfere with the transmission signal when rotating.
Design of directional positioning groove, used for directional positioning when the signal rod is loaded once.
| Type | Type of threads (K) | External diameter (B) | Carbon storehouse size (L) | Weight (KG) |
| 73 Drill Head Series | 50 Drill pipe threads | Φ73 | 380 | 17 |
| 83 Drill Head Series | 60 Drill pipe threads | Φ83 | 380/480 | 23/27 |
| 83 Drill Head Series | 73 Drill pipe threads | Φ83 | 380/480 | 25/29 |
| 88 Drill Head Series | 76 Drill pipe threads | Φ88 | 380/480 | 26/30 |
| 93 Drill Head Series | 83 Drill pipe threads | Φ93 | 380/480 | 32/36 |
| 108 Drill Head Series | 89 Drill pipe threads | Φ108 | 380/480 | 44/48 |
| 127 Drill Head Series | 102 Drill pipe threads | Φ127 | 380/480 | 73/78 |
| 168 Long Drill Head Series | 127 Drill pipe threads | Φ168 | 480 | 150 |
| 194 Long Drill Head Series | 140 Drill pipe threads | Φ194 | 480 | 270 |
Features
Formation:suitable for sand and medium to very hard soil
Structure:steel casing,welded
Connection with drill rod:octagonal connection direct connection with drill rod
Connection with laid pipe:within or without swivel
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
