Product Details:
|
| Product Name: | HDD Tools | Applicable Industries: | Construction Works , Energy & Mining, Infrastructure Construction |
|---|---|---|---|
| Type: | Reamers | Machine Type: | Drilling Tool |
| Material: | Steel | Processing Type: | Casting |
| Outside Diameter: | 200mm-1000mm | Application: | Horizontal Directional Drilling |
| Usage: | For Horizontal Directional Drilling Rig | OEM Service: | Accept |
| High Light: | 30kg Horizontal Directional Drilling Pilot Guide Bit,93mm Horizontal Directional Drilling Pilot Guide Bit |
||

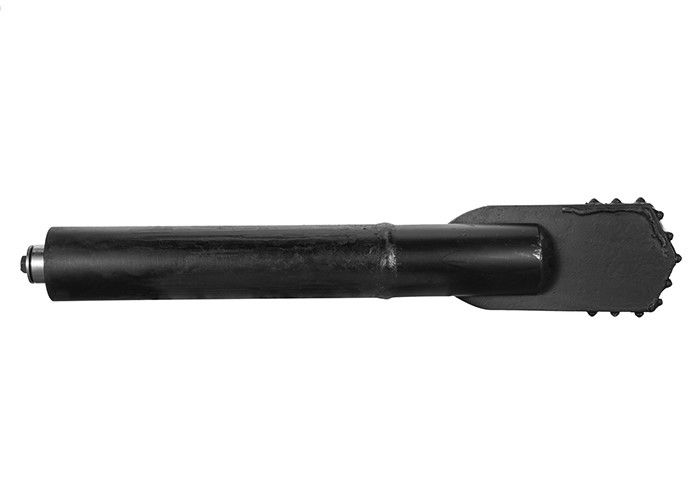

Sound Housing And Pilots Guide Bits For HDD Horizontal Directional Drilling
Product Description
Suitable for laying materials of different diameters and different weights.
It is applicable to the thrust and return force requirements of ground drilling rigs. Choose different types of drilling tools to drill.
Suitable for drill rods and tools of different specifications.
Choose different types of drilling tools, suitable for different geological rock working conditions.
| Type | Type of threads (K) | External diameter (B) | Carbon storehouse size (L) | Weight (KG) |
| 73 Drill Head Series | 50 Drill pipe threads | Φ73 | 380 | 17 |
| 83 Drill Head Series | 60 Drill pipe threads | Φ83 | 380/480 | 23/27 |
| 83 Drill Head Series | 73 Drill pipe threads | Φ83 | 380/480 | 25/29 |
| 88 Drill Head Series | 76 Drill pipe threads | Φ88 | 380/480 | 26/30 |
| 93 Drill Head Series | 83 Drill pipe threads | Φ93 | 380/480 | 32/36 |
| 108 Drill Head Series | 89 Drill pipe threads | Φ108 | 380/480 | 44/48 |
| 127 Drill Head Series | 102 Drill pipe threads | Φ127 | 380/480 | 73/78 |
| 168 Long Drill Head Series | 127 Drill pipe threads | Φ168 | 480 | 150 |
| 194 Long Drill Head Series | 140 Drill pipe threads | Φ194 | 480 | 270 |
Features
Stratum: suitable for sand and medium to very hard soil
Structure: steel shell, welded
Connect with drill pipe: Octagonal connection is directly connected with drill pipe
Laying pipe connection: rotatable or non-rotating
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
