Product Details:
|
| Product Name: | Drill Pipe Swivel | Machine Type: | Drilling Tool |
|---|---|---|---|
| Material: | High Manganese Steel / Carbon Steel, Stainless Steel | Processing Type: | Casting |
| Use: | Well Drilling | Tension Intensity: | 100-5000KN |
| Color: | Black / As Designed For Customers | Applicable Industries: | Energy & Mining |
| Size: | B/N/H/P WL Or Custom | Suitable Rock Range: | Soft, Middle Hard, Hard Rock |
| Type: | Drill Pipe Swivel | ||
| Highlight: | NC38 HDD Drilling Tools Swivel,15T HDD Drilling Tools Swivel |
||

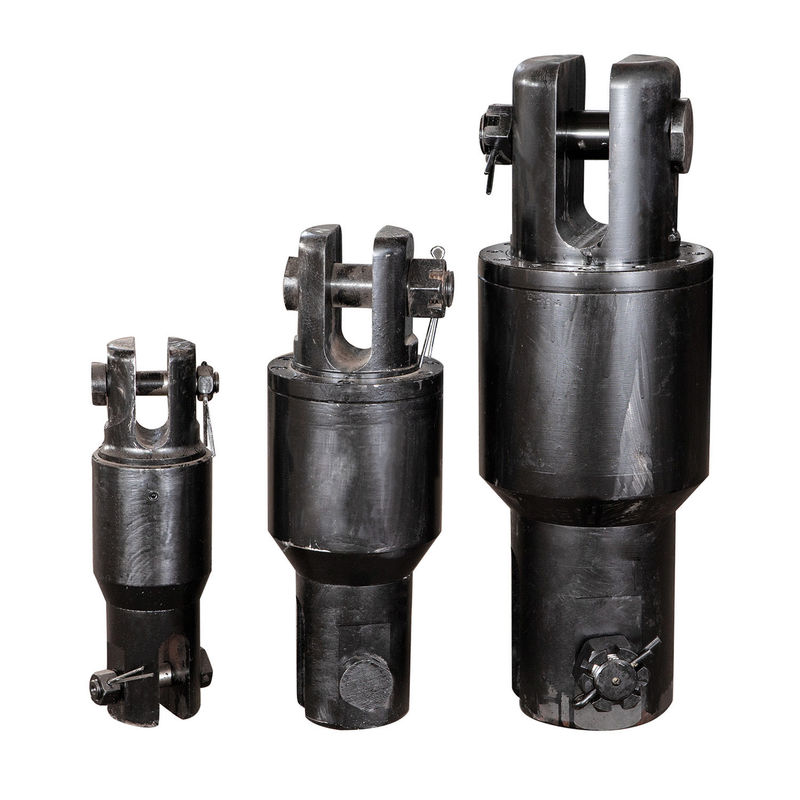

15T Swivel Connect With Reamer For Horizontal Directional Drilling Rig
Product Description
A drill pipe deployed swivel tool allowing independent upper string rotationEnables more weight to be applied to push liners into extended reach drilling wellsCan be 100% mechanically locked without the need for flow, circulation or pressureOnce locked it can be rotated to the right or to the left in tension or compressionPrevents potentially harmful rotation and torque being applied below it
| Type | Traction end connection mode | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg |
| 10T Swivel Series | Binaural | 28 | 99 | 317 | 28 | 33 | 10.5 |
| 15T Swivel Series | Binaural | 32 | 109 | 360 | 32 | 38 | 19 |
| 18T Swivel Series | Binaural | 32 | 136 | 352 | 30 | 35 | 20.5 |
| 20T Swivel Series | Binaural | 36 | 146 | 415 | 36 | 44 | 26.5 |
| 25T Swivel Series | Binaural | 38 | 156 | 433 | 38 | 42 | 29 |
| 30T Swivel Series | Binaural | 39 | 166 | 477 | 40 | 50 | 41 |
| 40T Swivel Series | Binaural | 42 | 192 | 543 | 48 | 60 | 70 |
| 50T Swivel Series | Binaural | 61 | 210 | 571 | 59 | 75 | 100 |
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg | ||
| 50T Swivel Series | NC31 | 60 | 210 | 571 | 60 | 75 | 100 |
| 60T Swivel Series | NC38 | 65 | 234 | 672 | 65 | 90 | 125 |
| 80T Swivel Series | NC46 | 65 | 244 | 697 | 65 | 90 | 175 |
| 100T Swivel Series | NC50 | 85 | 270 | 821 | 84 | 108 | 240 |
| 150T Swivel Series | NC50 | 100 | 314 | 904 | 102 | 135 | 330 |
| 200T Swivel Series | NC50,5-1-2FH | 110 | 340 | 1177 | 118 | 150 | 415 |
| 300T Swivel Series | NC50,5-1-2FH | 125 | 390 | 1282 | 122 | 173 | 800 |
| 400T Swivel Series | 6-5-8FH | 150 | 480 | 1530 | 150 | 216 | 940 |
| 500T Swivel Series | 6-5-8FH | 170 | 570 | 1651 | 192 | 248 | 2010 |
Features
Swivel cap complete with lifting bail for hoisting cable applications.
Specially designed bearing lubrication keeps contaminants away and relieves excess lubrication pressure.
Suitable for use with water or drilling mud.
Easy servicing in the field with common tools.
Majority of components are common with underground compact plus water swivel.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
