Saving Pipeline Occup Iedspace Pipeline Rehabilitation Pipe Bursting
Description

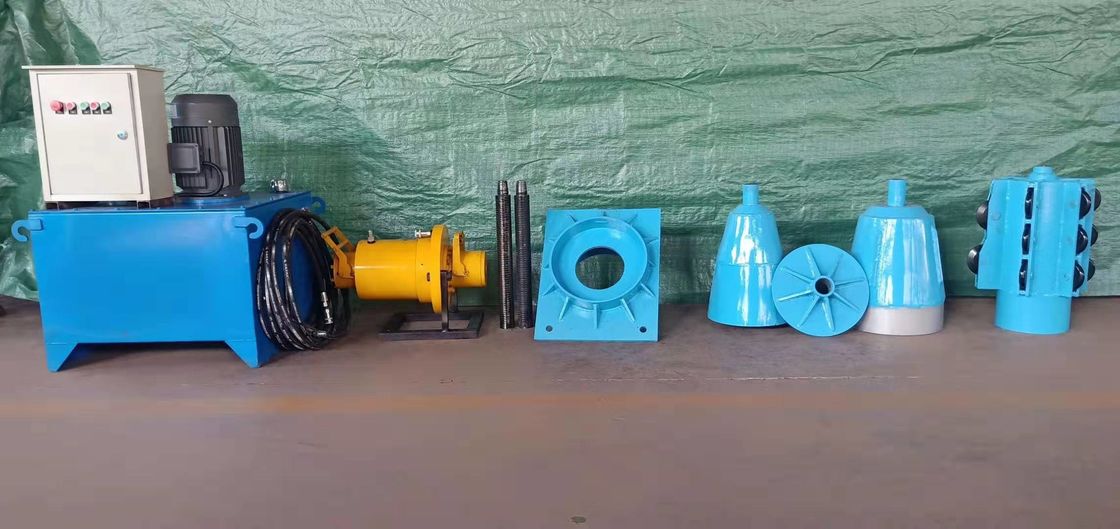

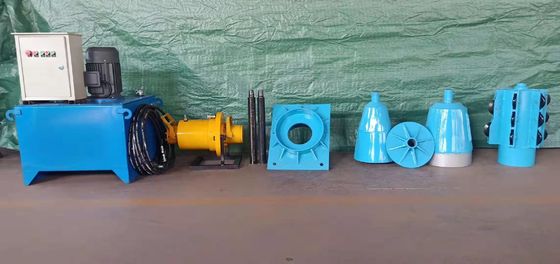

The pipe replacement system is composed of a pipe splitting machine, Puli rod, cutting machine and expansion head independently developed by Langfang Baiwei Drilling Co., Ltd. It is suitable for casing, cast iron pipe, concrete and steel pipe.
This equipment has the characteristics of saving pipeline space, simple construction, low cost and high efficiency, so it is used in the marking of urban old pipelines.
| Project |
Unit |
BL25 |
BL40 |
BL90 |
BL180 |
| Load |
KN |
250 |
400 |
900 |
1800 |
| Full thrust |
KN |
140 |
220 |
480 |
960 |
| Maximum pull-back speed |
m/min |
2.6 |
2.9 |
2 |
2 |
| Minimum pull-back speed |
m/min |
1.4 |
1.6 |
1.1 |
1.1 |
| Advance rate |
m/min |
2.6 |
2.9 |
2 |
2 |
| Power |
KW |
4 |
7.5 |
11 |
18 |
| Size of the host (length width and height) |
mm*mm*mm |
680*460*370 |
770*575*406 |
1140*855*592 |
1340*1100*760 |
| Hydraulic station size (length width and height) |
mm*mm*mm |
800*550*500 |
1200*1000*900 |
1350*1100*1000 |
1500*1300*1200 |
| The host weight |
kg |
145 |
260 |
800 |
1700 |
| Hydraulic station weight |
kg |
200 |
400 |
600 |
1100 |
| Fit diameter of manhole |
mm |
520 |
630 |
1000 |
1200 |
| Require well dimensions (length) |
mm |
1000 |
1200 |
2300 |
2600 |
| Rod specifications |
mm*mm |
Φ42*600 |
Φ60*600 |
Φ68*1000 |
Φ89*1000 |
| Project |
Unit |
KX80 |
KX50 |
BX40 |
| Load |
KN |
800 |
50 |
40 |
| Full thrust |
KN |
|
|
|
| Maximum pull-back speed |
m/min |
1.5 |
1.5 |
1.8 |
| Minimum pull-back speed |
m/min |
0.8 |
0.8 |
0.9 |
| Advance rate |
m/min |
|
|
1.8 |
| Power |
KW |
7.5 |
4 |
4 |
| Size of the host (length width and height) |
mm*mm*mm |
600*400*400 |
480*400*400 |
413*452*311 |
| Hydraulic station size (length width and height) |
mm*mm*mm |
1200*1000*900 |
800*550*500 |
800*550*500 |
| The host weight |
kg |
280 |
120 |
120 |
| Hydraulic station weight |
kg |
400 |
140 |
200 |
| Fit diameter of manhole |
mm |
420 |
420 |
460 |
| Require well dimensions (length) |
mm |
1000 |
800 |
800 |
| Rod specifications |
mm*mm |
Φ68*600 |
Φ60*500 |
Φ6*500 |
