Simple Construction Pipeline Rehabilitation Pipe Bursting
Description

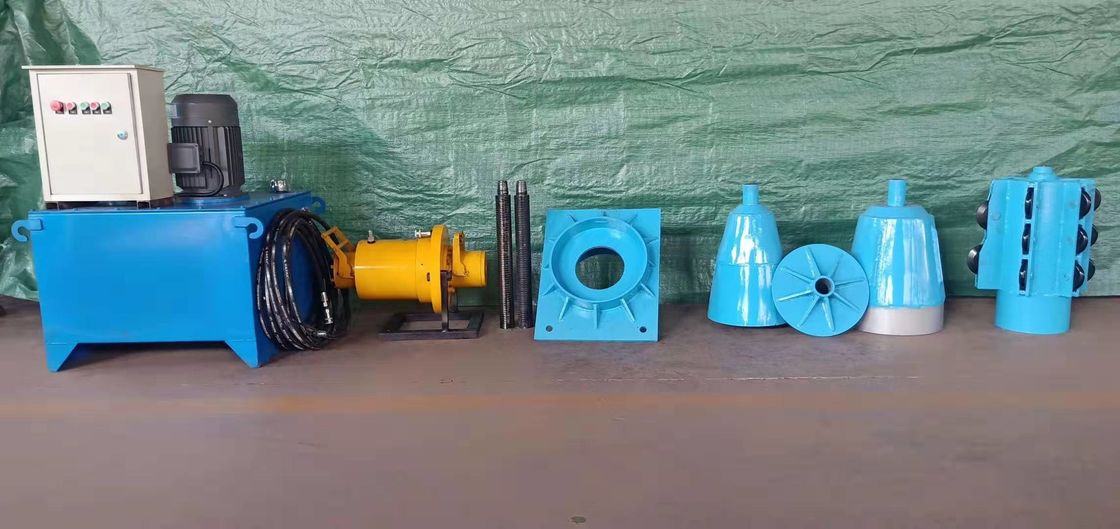

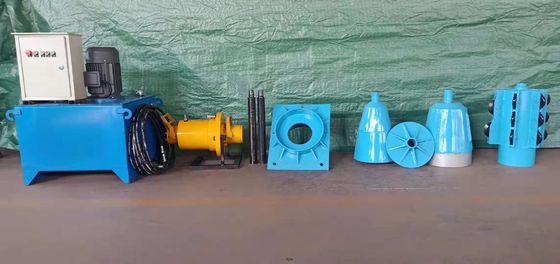

The pipe replacement system is composed of a pipe splitting machine, Puli rod, cutting machine and expansion head independently developed by Langfang Baiwei Drilling Co., Ltd. It is suitable for casing, cast iron pipe, concrete and steel pipe.
This equipment has the characteristics of saving pipeline space, simple construction, low cost and high efficiency, so it is used in the marking of urban old pipelines.
| Project |
Unit |
BL25 |
BL40 |
BL90 |
BL180 |
| Load |
KN |
250 |
400 |
900 |
1800 |
| Full thrust |
KN |
140 |
220 |
480 |
960 |
| Maximum pull-back speed |
m/min |
2.6 |
2.9 |
2 |
2 |
| Minimum pull-back speed |
m/min |
1.4 |
1.6 |
1.1 |
1.1 |
| Advance rate |
m/min |
2.6 |
2.9 |
2 |
2 |
| Power |
KW |
4 |
7.5 |
11 |
18 |
| Size of the host (length width and height) |
mm*mm*mm |
680*460*370 |
770*575*406 |
1140*855*592 |
1340*1100*760 |
| Hydraulic station size (length width and height) |
mm*mm*mm |
800*550*500 |
1200*1000*900 |
1350*1100*1000 |
1500*1300*1200 |
| The host weight |
kg |
145 |
260 |
800 |
1700 |
| Hydraulic station weight |
kg |
200 |
400 |
600 |
1100 |
| Fit diameter of manhole |
mm |
520 |
630 |
1000 |
1200 |
| Require well dimensions (length) |
mm |
1000 |
1200 |
2300 |
2600 |
| Rod specifications |
mm*mm |
Φ42*600 |
Φ60*600 |
Φ68*1000 |
Φ89*1000 |
| Project |
Unit |
KX80 |
KX50 |
BX40 |
| Load |
KN |
800 |
50 |
40 |
| Full thrust |
KN |
|
|
|
| Maximum pull-back speed |
m/min |
1.5 |
1.5 |
1.8 |
| Minimum pull-back speed |
m/min |
0.8 |
0.8 |
0.9 |
| Advance rate |
m/min |
|
|
1.8 |
| Power |
KW |
7.5 |
4 |
4 |
| Size of the host (length width and height) |
mm*mm*mm |
600*400*400 |
480*400*400 |
413*452*311 |
| Hydraulic station size (length width and height) |
mm*mm*mm |
1200*1000*900 |
800*550*500 |
800*550*500 |
| The host weight |
kg |
280 |
120 |
120 |
| Hydraulic station weight |
kg |
400 |
140 |
200 |
| Fit diameter of manhole |
mm |
420 |
420 |
460 |
| Require well dimensions (length) |
mm |
1000 |
800 |
800 |
| Rod specifications |
mm*mm |
Φ68*600 |
Φ60*500 |
Φ6*500 |
About us
Langfang Budweiser Drilling Co., Ltd. is located in the center of Beijing, Tianjin and Hebei-Yongqing Industrial Zone. Langfang, Hebei.
Our company is a drilling tool manufacturing enterprise integrating design, geology, wellbore, double-wall, petroleum, auger and other special drill pipes. As well as non-excavation special drilling tools, such as pilot bits, rotors, reamers, fuel savers, pneumatic tampers, and pipe bursting machines.
We specially invited the well-known domestic expert Mr. Zhou Shengfeng as the general manager, he is a technical consultant engaged in HDD drilling tools and processing technology. A strong research team has laid the foundation for product quality, new product development and after-sales service.
FAQ
Q: What's your delivery time?
A: Commonly produce need 20 days to produce. Within 3 days if in stock.
Q: How to control the quality?
A: We should be checking & testing everyone drill rod before shipment.
Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.
Q: Does your drill rod have heat treatment?
A: Yes, the heat treatment for our drill rods and casing pipes.
Q: Does your drill rod have rust prevention?
A: Yes, every one drill rod and casing pipe will be with the rust prevention by paint or anticorrosive oil before shipping. If you need galvanized pipes pls contact us the price.
