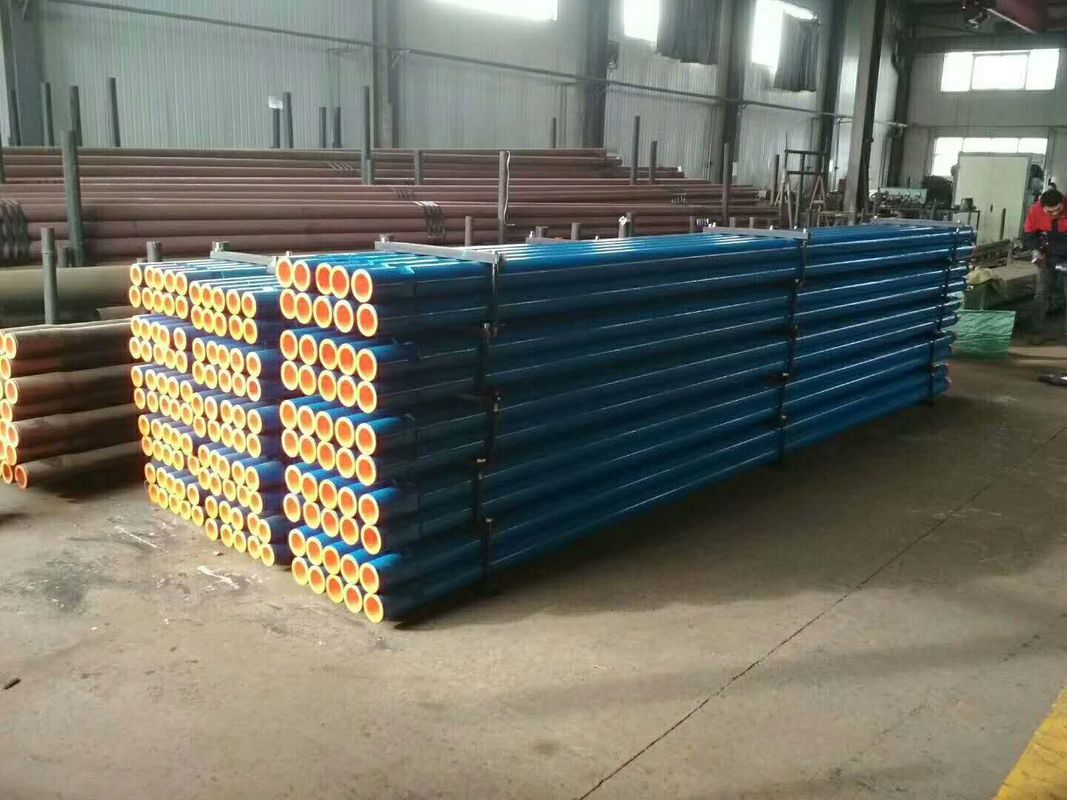

High Quality Water Well Drilling Rod Drill Pipe With Thread Connector
Product Description
Steel and aluminum drill pipe materials.
The pipe size is 2 3/8 to 4 1/2 of the outer diameter.
A variety of tool joint connection options.
Flush outer diameter and 180 shouldered tool joints.
Standard wrench flat on the box end tool connector.
Constant wall tube configuration.
The shoulder-to-shoulder length ranges from 10 to 45 feet (in 5-foot increments).
| Place of Origin |
HeBei, China |
| Type |
Drill Pipe |
| Machine Type |
Drilling Equipment |
| Certification |
API |
| Material |
E75, R780, X95, G105, S135 etc |
| Processing Type |
Forging / Rolling pipe |
| Use |
Well Drilling |
| Diameter |
50, 60, 73, 89, 114, 127 |
| Application |
Water well drilling |
| Advantage |
High Performance |
| Usage |
Well Drilling |
| Color |
Black or customized |
| Drill pipe diameter (mm) |
Drill pipe length (mm) |
Wall Thickness (mm) |
Type of threads |
Spanner slot (mm) |
| 3 1/2 |
89 |
1000-9144 |
6 |
API 2 3/8"IF |
square 70/64 |
| 4 |
102 |
1000-9144 |
8.38 |
API 2 7/8"IF |
square 76/89 |
| 4 1/2 |
114 |
1500-9144 |
8.38 |
API 3 1/2"REG/IF |
89/95 |
| 5 |
127 |
1500-9144 |
9.19 |
API 3 1/2"REG/IF |
89 |
| 5 1/2 |
140 |
1500-9144 |
10.00-25.4 |
API 4 1/2'REG/IF or 4'FH |
114 |
| 6 1/4 |
168 |
3000-9144 |
10.00-25.4 |
API 4 1/2'REG/IF or 4'FH |
127 |
| 7 |
178 |
3000-9144 |
12.7-25.4 |
5 1/2/FH/REG |
127 |
| 7 5/8 |
194 |
3000-9144 |
12.7-25.4 |
6 5/8/REG |
152 |
Advantages
It has features of big rigidity, good sealing capacity, flat outer structure, and low torque and resistance when rotating.
Used in
Water Well drill rods widely used in geological exploration, coal mining, water conservancy & hydropower, highway, railway, bridge, building construction etc.
The type have exploring water well rods, exploring water spiral drill rods, outburst-prevention drill rods, DTH drill rods, triangle drill rods, anchor-shank drill rods, extension rods, EU drill rods, RC drill rods, KLEMM drill rods, Ingersoll Rand drill rods etc.
About us
LangFang Baiwei Drill Co.,Ltd located in the center of Beijing, Tianjin and Hebei-Yongqing Industrial Area. Langfang Hebei.
Our company is a drilling tools manufacturing enterprisewith integration of design, geological, well, double wall, oil, auger and other special drilling pipes. And trenchless special drilling tools such as pilot guide bits,swivels, reamers, sub saver, pneumatic pipe rammer, pipe bursting machine.
We have specially invited domestic wellknown expert Mr.zhou shengfeng as our general manager who engaged in the HDD drilling tools and processing technology as technical consultant. A solid research team lays the foundation of product quality, new product development and after-sales service.
