73mm Diameter Top HDD Drill Pipe

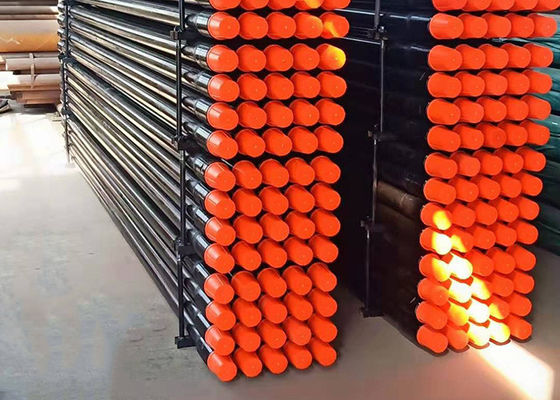

Large Image : 73mm Diameter Top HDD Drill Pipe

Product Details:

Place of Origin:	Hebei China
Brand Name:	Long way

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	With iron
Delivery Time:	20-30 working days, which will be adjusted according to different products and inventory
Payment Terms:	T/T

Contact Now

73mm Diameter Top HDD Drill Pipe

Description

Name:	Hdd Drill Pipe	Diameter:	73 Mm
Wall Thickness:	8 Mm	Length:	4 M
Weight:	57 Kg	Tool Joint OD:	78 Mm
Thread:	NC23	Steel Grade:	S
Torque Limit:	13 KN.m	Min.Bend Radius:	45 M
Highlight:	73mm Top HDD Drill Pipe , NC23 HDD Drill Pipe

73 Mm Diameter Double Ledge HDD Drill Pipe

Packaging & Delivery

Packaging Details: with iron

Port: Tianjin

Lead Time :

Quantity(Pieces)	1 - 100	>100
Est. Time(days)	20	To be negotiated

Product Description

Drill pipe joints adopt the double ledge (double top) structure. Such structure can enhance the tightness of joints so that the pressure of the mud could realize non-leakage half-way. Greatly reduce the resistance to pilot drilling and back, using this structure improves the torsional strength of drill pipe so that the box thread will not deformed.

Specifications

Diameter		Wall Thickness		Length		Weight	Tool Joint OD		Thread	Steel Grade	Torque Limit		Min.Bend Radius
(mm)	(in)	(mm)	(in)	(m)	(ft)	(Kg)	(mm)	(in)			(KN.m)	(Lb.ft)	(m)	(ft)
50	2	6.5	0.256	2	6.56	17	53	2.09	ZX50	G	2.9	2140	38	124.67
				2.5	8.20	20				S	3	2214	30	98.43
60	2 3/8"	7.1	0.28	2	6.56	23	68	2.68	ZX60	G	6	4428	42	137.79
				3	9.84	32				S	6.3	4650	33	108.27
73	2 7/8"	8	0.315	3	9.84	43	78	3.23	NC23	G	12	8856	58	190.29
				4	13.12	57				S	13	9594	45	147.69
76	3	9	0.354	3	9.84	56	88	3.47	NC26	G	14	10332	62	203.41
				4	13.12	71				S	16.5	12177	56	183.73
83	3 1/4*	9	0.354	3	9.84	57	92	3.62	D80 NC26	G	16.8	12398	73	239.50
				4.5	14.76	79				S	18	13284	65	213.26
89	3 1/2"	9.35	0.368	4.5	14.76	99	105	4.13	NC31	G	22.3	16457	80	262.47
				6	19.69	128				S
102	4	10	0.394	6	19.69	160	123	4.41	NC38	G	38	28044	90	295.28
										S	48	35424	82	296.03
114	4 1/2"	10	0.394	6	19.69	162	127	5	NC38 NC40	G	50	36900	98	321.52
										S	64	47232	90	295.28
114	4 1/2"	10	0.394	6	19.69	178	157	6.18	NC46	G	50	36900	98	321.52
										S	64	47232	90	295.28

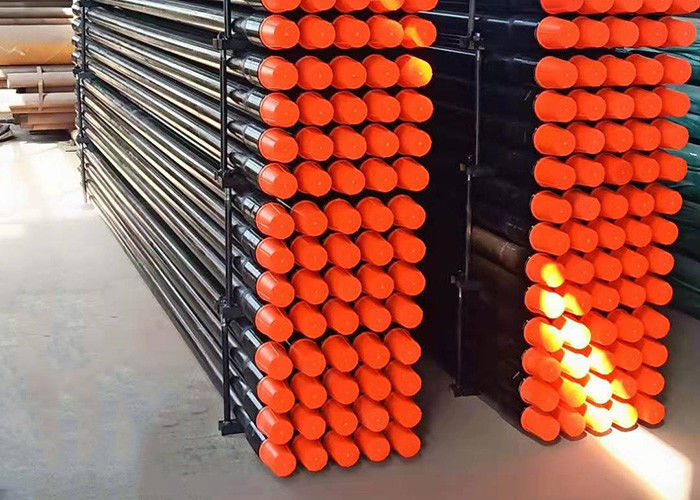

73mm Diameter Top HDD Drill Pipe 0

73mm Diameter Top HDD Drill Pipe 1

Quality Control

Our quality team’s work begins by ensuring a consistently high standard of raw material: checking every batch on delivery against the technical team’s strict criteria for dimensional accuracy and steel chemistry. Once approved for production, every item of material is issued a work number that allows us to track it through every subsequent step of the manufacturing process. The completed product is finally issued and stamped with a serial number that enables 100% traceability of all that manufacturing data.
